Hdpe V355 Hydraulic Fusion Butt Welding Machine - China

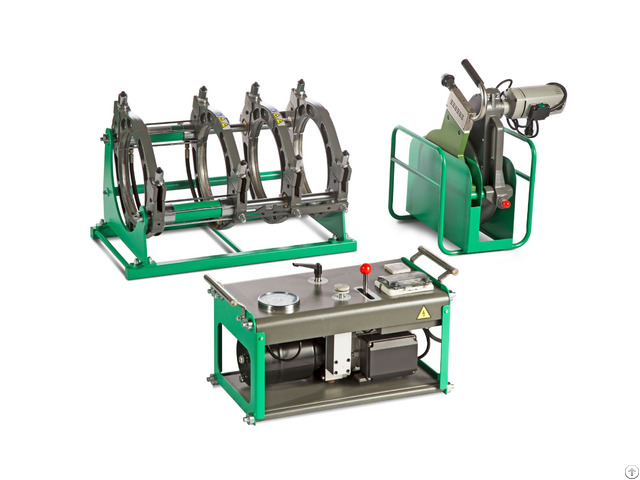

V355 includes: *A machine body with 4clamps and 2hydraulic cylinders with quick couplings; *Complet shaft with German made oil seal kit *A Teflon coated heating plate with separate temperature control system; *A electrical milling cutter; *Hydraulic hoses with Italian made quick couplings; *Support for milling cutter and heating plate; *Accumulator *Premium tooling box Available options: Data logger Support roller Stub end holder Different inserts (Single insert, ISO inserts) FEATURES Welding range: 90mm-355mm

Reducing Inserts: 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315mm

Welding Material: PE, PP and PVDF

Voltage ～220V±10%, 50/60Hz

Total Power: 6.25 Kw

Trimmer: 1.5 Kw

Heating Plate: 4.0 Kw

Hydraulic Power Unit: 0.75 KW

Max.

Pressure: 80 Bar

*For more specifications, please contact our sales.

Our products:

1, 2 years warranty

2, Bronze screw(reduce the wastage and long life time)

3, High-performance Cylinder(welder pipes at high pressure)

4, Smaller footprint with high strength connection bars(give more space when working)

5, German and italy components of the Oil Tank
