Cnc Hardbanding Welding Machine - China

Applications in oil and gas industry

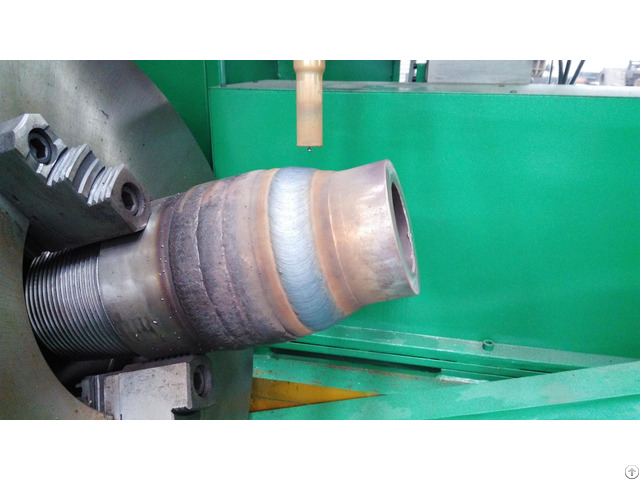

Manufacture of fully automated system for hardbanding of: OD wear protection on drill collars, Drill pipe, Heavy wall drill pipe Hardbanding of pin and box tools ioints Center upset wear pad Other tools used in drilling applications.

Unit HY-200 HY-260

Spindle center height mm 950 950

Welding length mm 0-200 0～200

Workpiece diameter mm ≤200 ≤260

Spindle number of speeds NO.

无级 无级

Spindle speed r/min 0.2～2 0.2～2

Max.

travel of X-axis mm 320 320

Max.

travel of Z-axis mm 500 500

Noise dB ≤68 ≤68

Wire-feeding wheel interval min 4.5 4.5

Welding wire change interval min 4 4

Wire feeder roller number NO.

2或4 2或4

Welding torch angle adjusting range ° 0～19 0～19

Welding torch swing distance mm 10～35 10～35

Welding torch swing times per minute NO.

/min 50～150 50～150

Machine weight kg 2200 2300

Machine dimension(L×W×H) mm 2400*1600*2000 2400*1600*2000

Company Contact:

• Posted By: Taixing Hongyuan CNC Machine Tool Co.,Ltd

• Phone: +86-13951157652

• Address: Daiwang Road, East Industrial Park, Taixing , Jiangsu , China

• Email:

• Business Description: Taixing Hongyuan Machinery Co., Ltd, located in Taixing, Jiangsu, is the top ranked and experienced machinery manufacturer and supplier in China, whose series of high quality CNC machinery, machine tools, mechanical & electric equipments are widely used in the field of metalworking, shipbuilding, oil industry etc.

  Established in 2003, and spread its business to over 30 countries

  Our main product :

  1 - CNC pipe threading lathe, drill pipe hardbanding machine, drill pipe repair machine, CNC spiral groove milling machine etc, this series machineries are mainly used in petroleum, gas industry for manufacturing and processing hardbanding, thread products, on oil tubing, casing, drill pipe, drill collar, tool joint, and coupling etc.

  2 - CNC gas/plasma cutting machine， Wire rope swaging machine

  3 - High velocity relief valve (pressure/vacuum valve) for oil tanker and chemical tanker



  With over 10 years of combined knowledge and expertise, our team is staffed with skilled people that our customers can count on, provide innovative and cost effective solutions to customer needs.
