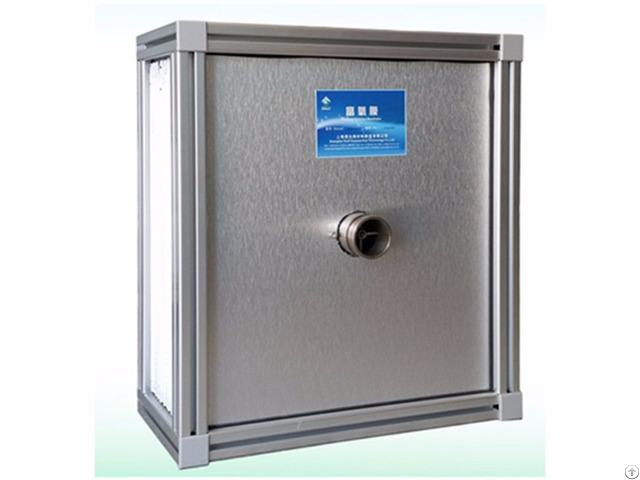

Plate Oxygen Enriched Module - China

Basic theory of oxygen enrichment with membrane： Under the impetus of pressure difference between two sides of membrane, oxygen in air pass through membrane first and get oxygen enrichment gas.

Membrane oxygen generation system can be using for oxygen enriched combustion, oxygen enriched ventilation, home oxygen bar, plateau oxygen enrichment, aeration in underground space, biological fermentation, aquiculture and sewage disposal etc.

Small component separator specifications : 1, 2, 3, 4, 5, 10, 15 L/min Medium production separator specifications : 10, 20, 30, 40, 50, 60, 100 Nm3 / hr

Large plate membrane oxygen enrichment separator models：1000, 2000, 2500, 3000, 4000, 5000, 6000, 7500 Nm3/hr Suitable oxygen production after parallel connection：0.1～50000 m3/h　　 Oxygen purity：23～35%　　

Outlet pressure：1～5KPa Performance Table of Plate Oxygen-enriched Modules

Model P04901020 P04902020 P04905020 P04910020

Environment temperature(℃) 5~50 5~50 5~50 5~50

Environmental pressure(kPa) 101.325 101.325 101.325 101.325

Intake requirements Clean air Clean air Clean air Clean air

Operating pressure range(kPa) 0~-80 0~-80 0~-80 0~-80

Outline size(mm×mm×mm) 1030×145X850 1030×190×850 1030×310×850 1030×550×850

Weight(kg) 21.1 24.4 33.6 49.7

Air intake requirement(m³/h) ≥100 ≥200 ≥500 ≥1000

Vacuum degree-50kpa Oxygen content(v/v%) Oxygen content(v/v%) Oxygen content(v/v%) Oxygen content(v/v%) 26.0±1.0 26.0±1.0 26.0±1.0 26.0±1.0 Air permeability(m³/h) Air permeability(m³/h) Air permeability(m³/h) Air permeability(m³/h) 6.7 13.3 33.3 66.7

Vacuum degree-75kPa Oxygen content(v/v%) Oxygen content(v/v%) Oxygen content(v/v%) Oxygen content(v/v%) 29.5±1.0 29.5±1.0 29.5±1.0 29.5±1.0 Air permeability(m³/h) Air permeability(m³/h) Air permeability(m³/h) Air permeability(m³/h) 10 20 50 100

Note 1 : All pressure gauges are gauge pressures 2 : The test condition of 20 ℃ and 101.325 KPA, 60%RH For further information on Oxygen enriched module products, please do not hesitate to contact our technical service team.

We look forward to helping you meet all of your membrane needs.
