Mgg Sanitary Electromagnetic Flowmeter - China

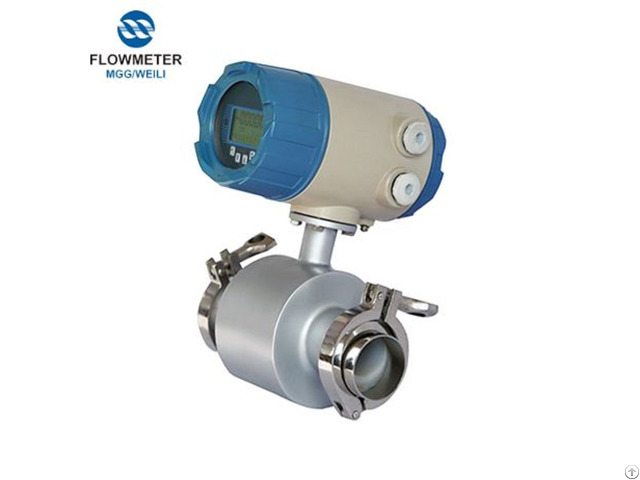

MGG Sanitary Electromagnetic flowmeter

Stainless Steel Sanitary Electromagnetic flowmeter China, Food Industry Flowmeter

Quick Details:

Place of Origin Henan, China (Mainland) Brand Name WEILI Model Number MGG

Product Name MGG keyword Sanitary Centrif flowmeter Nominal Bore DN10~DN100mm

Nominal Pressure 1.0~4.0MPa Accuracy ±0.5%;±0.2% Flow range 0~10m/s(Flow Velocity)

Liner material PFA Shell material Stainless Steel Medium temperatu Remote type -10℃ ~ +160℃ MGG Sanitary Centrif:

Magne W3000 PLUS Sanitary type Electromagnetic flowmeter adopting new sanitary centrifugal liner and technology, which is in line with the food industry hygiene requirements.

At the same time, its stainless steel shell connected with stainless steel clamp, easy to remove and clean so that the flowmeter can not easily be contaminated in using process and applied in food manufacture processing of Mineral water, soy sauce, jam, beer, fruit juice, rice, milk, etc and Health and chemical industry .

Characteristics:

1 - It adopts new sanitary centrifugal liner, that prevent the residue of measured media accumulated in the measuring pipe .

2 - It uses Fast Connection program and makes the demolition of the electromagnetic flowmeter, maintenance and cleaning to be facilitated.

3 - It uses 16 digit embedded Super-Micro power consumption Microprocessor, meanwhile adopts special technical designing excitation system of sensor, having the functions such as higher integration, fast in operational speed, best accuracy in calculation, digital signal processing, strong capability of interference immunity, stable and reliable measurement.

Technical Data:

Nominal Bore DN10~DN200mm

Nominal Pressure 1.0~4.0MPa

Accuracy ±0.5%;±0.3%

Flow range 0~10m/s(Flow Velocity)

Liner material PFA

Measuring Electrodes 316L Stainless steel, Harrington alloy B/C, Titanium, Tantalum, Shell material Stainless steel

Medium temperature Remote type -10℃ ~+160℃, Integral type -10℃ ~ +80℃

Ambient Temperature -25℃ ~ +60℃

Connection Mode ISO Standard Quick Connector

Power 220V AC or 24V DC

Note: The company can be processed according to user requirements Lining material

Lining material The main performance The scope of application

Teflon(PTFE) 1 - The most stable chemical properties of plastics in a material that is resistant to boiling hydrochloric acid, sulfuric acid and aqua regia, but also resistant to concentrated acids and various organic solvents, intolerance chlorine trifluoride, liquid oxygen, high velocity liquid oxygen, ozone corrosion.

2 - Poor wear resistance Concentrated acid, alkali and other corrosive media

PFA Corrosion resistance with PTEF, strong anti-negative pressure Can be used for negative pressure state

F46 1 - Corrosion resistance with PTEF.

2 - Can withstand low wear and tear.

3 - Strong anti-negative pressure.

1 - With PTFE.

2 - Can be used for low abrasive media.

Neoprene 1 - Have excellent flexibility, a high degree of tensile force, good wear resistance.

2 - Resistant to the general low concentrated acid, alkali, salt medium corrosion, corrosion resistant to oxidizing media.

Water, sewage, weakly abrasive mud, pulp

Polyurethane 1 - Has excellent wear resistance (equivalent to 10 times the natural rubber).

2 - Acid, alkali performance than.

3 - Do not use water mixed with organic solvents Strong neutral wear pulp, coal slurry, mud and so on
