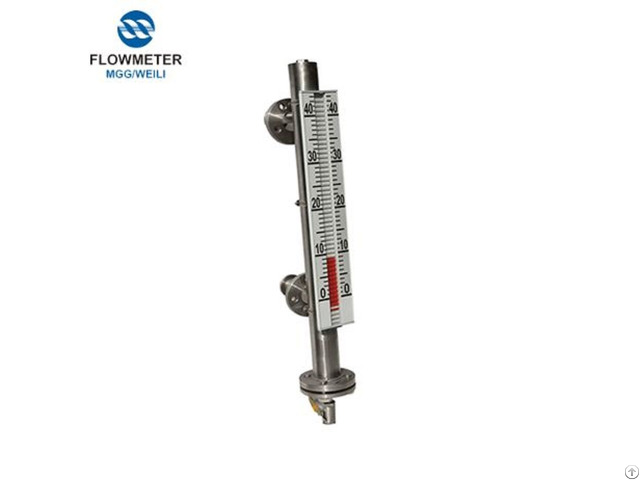

Measured Range 4-20 Liquid Level Gauge Transmitter

Magnetic Liquid Level Gauge Transmitter, 4mA 20mA Liquid Level Gauge

Quick Details：

Place of Origin Henan, China (Mainland) Brand Name WEILI Model Number ULZ

Measuring range 300~6000mm Media weight Level: ≥0.55g/cm3 Ambient temperature -40~80 ℃

Operating temperature -20~120℃ Work pressure 0.6;1.0;2.5;4.0Mpa measurement accuracy ±1cm(Pillar diameter 1cm) Product Description：

UlZ series of magnetic liquid level meter is our factory to introduce advanced foreign technology, according to the principle of buoyancy and magnetic coupling effect developed.

According to the relevant standards developed by the level of instrumentation, widely used in petroleum, chemical, pharmaceutical, food and other industries in various towers, cans, tanks, spherical containers and boiler equipment in the medium of liquid level, the level of direction.

Main Features：

1 - Level gauge based on the principle of buoyancy and magnetic coupling developed

2 - Coupled with the liquid level alarm, control switch, liquid, boundary of the upper and lower limits alarm, control and chain

3 - Coupled with the reed - resistance level transmitter, the level, the boundary signal is converted into 4 ~ 20mADC standard current signal, remote indication, detection, recording control.

4 The product is eye-catching, intuitive readings, measurements are correct, 5 The product is safe and reliable, easy to maintain, from the impact of high and low temperature, the whole process of measurement without blind spots

6 Due to the complete separation of liquid and boundary indicating system from the medium, it is especially suitable for explosive and toxic environments.

Technical Parameters：

Measuring range 300~6000mm(Increase the range can be customized)

Nominal length 300-6000mm

Media weight Level: ρ ≥0.55g/cm3Interface: ρ1 -ρ2≥0.16g/cm3

Work pressure 0.6;1.0;2.5;4.0Mpa

Ambient temperature -40~80 ℃

Operating temperature -20~120℃

measurement accuracy ±1cm(Pillar diameter 1cm)

Connection flange size DN20, PN4.0 raised face flange HG20592-97
