Liquid Flow Measure Device Ultrasonic Heat Meter - China
price: 5.00 Dollar US$

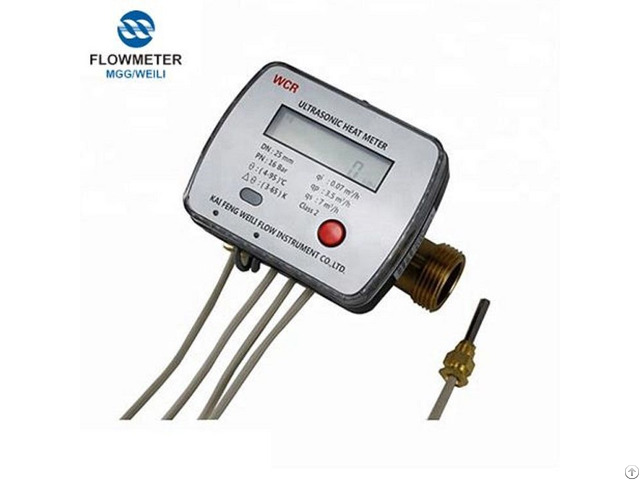

Liquid Flow Measure Device Ultrasonic Heat Meter
International Model Ultrasonic Heat Meter, International Standard Flowmeter China
Quick Details:
Place of Origin Henan, China (Mainland) Brand Name WEILI Model Number WCR
Product Name Liquid flow measure device ultrasonic heat meter Medium WATER Accuracy 2
Power supply Battery Powered Output MBUS Application Household heat meter
Connection Thread Working pressure 1.6Mpa Material copper Product Description:
The heat meter is a measuring instrument for measuring the heat released by a heating system using hot water as a heat transfer medium.
The measured heat is accurately calculated by the calculator by measuring the flow rate and the inlet and outlet temperatures in the water supply pipe.
Flow Sensors
DN(mm) QS(m^3/h) QP(m^3/h) QI(m^3/h)
DN15 0.03 1.5 3
DN20 0.05 2.5 5
DN25 0.07 3.5 7
DN32 0.12 6.0 12
DN40 0.20 10 20
DN50 0.60 15 30
DN80 1.60 40 80
DN100 2.40 60 120
DN125 4.00 100 200
DN150 6.00 150 300
DN200 10.0 250 500 Calculator
temperature range 4℃~95℃
Temperature difference 3K~65K
Temperature resolution 0.03℃
power supply 3.6V
Battery Life >6yeas
LCD 8bit Temperature Sensor
Platinum resistance PT1000
diameter 5mm, 8mm
cable length 1.5M Technical Parameters
Ambient temperature 5℃~55℃
Working pressure 1.6MPa
Accuracy 2.0 Level Main Features:
1) Using advanced foreign technology, it can automatically collect flow signal, inlet water temperature, return water temperature, automatically calculate instantaneous flow, cumulative flow, temperature difference and other parameters.
2) The hot and cold (heating, cooling) type heat meter can intelligently judge the heating or cooling state according to the actual use condition and measure separately.
3) It can be connected with M-BUS and RS485 interfaces to realize data remote transmission and centralized meter reading function, which is convenient for automatic intelligent management control of residential buildings.
Company Contact:
- Posted By: kai feng weili flow instrument Co.,Ltd
- Phone: +863782851531
- Address: No.6th northern Industrial park., kai feng, He nan, China
- Email:
- Website: https://www.weiliflowmeter.com/
Published date: June 20, 2019
- Business Description: Kai Feng Weili Flow Instrument CO.,LTD based on over 20+ years experience in the field of flow measurement and industrial instrumentation,as a manufacturer of Electromagnetic flow meter/vortex flow meter/Orifice plate meter/Metal Rotor meter/Water meter with a physical presence in 355 cities of China supported by our advanced Technical team.
Weili is CE,ISO 9001: 2008,ISO14001 registered,committed to providing high reliability, high precision automatic instruments and sensors for global customers.
The company has 62 patented technologies, and its products are exported to Japan, United States, South Korea, India and other countries.
The company has built DN2000mm water large flow verification device, and expected to obtain the laboratory CNAS certification issued by the National Accreditation Committee of China conformity Assessment by the end of 2018, which will lay the foundation for the transformation of the company into a service-oriented enterprise.
Become the forerunner and leader in the domestic Flow meter market.
In early 2010, the company began to research and develop ultrasonic heat meter, ultrasonic water meter and other new household measuring instruments, introduced MSP430F149 as the main control chip control unit, electronic scale, flow control valve, constant temperature water tank, pressure tank, water storage tank, solenoid valve, There are 2 sets of standard verification devices for heat meter, such as water pump, which can calibrate 100 heat meters at the same time on line.
It has 4 assembly and welding production lines, more than 40 skilled operators, and its daily output is between 500 and 800 sets.
At present, the annual sales volume is more than 20 million.
With the spread of the heat meter in the country in recent years, there are already 15 provinces and 59 cities in the country promoting heat meter.
The building area of central heating has reached 865.4 million square meters, annual demand is 1.5 million.
The market prospects are huge.
In 2018, the goal is to grasp the product application of the layout of the Internet of things, and cooperate with China Telecom and Huawei to launch the Internet of instrument sensor and cloud service platform based on NB-IOT technology to supply water of the city.
Thermal companies provide a full range of intelligent Internet of things solutions.
We pride ourselves in providing a service second to none and can usually accommodate special delivery requests, Weiliexperience has been built up over the last 20 years, and we are totally committed to working in partnership with our customers and ensuring meet your exact requirements in next 20 years,30 years.
With numerous manufacturing sites as well as regional sales and service centers across the globe, we are committed to being as close to our customers as possible.
We are supported by a growing list of highly valued customers, spread across a range of industries, from small local manufacturers to large multinationals, and we continue to appreciate the trust they have placed in the products we represent and the services we provide.
