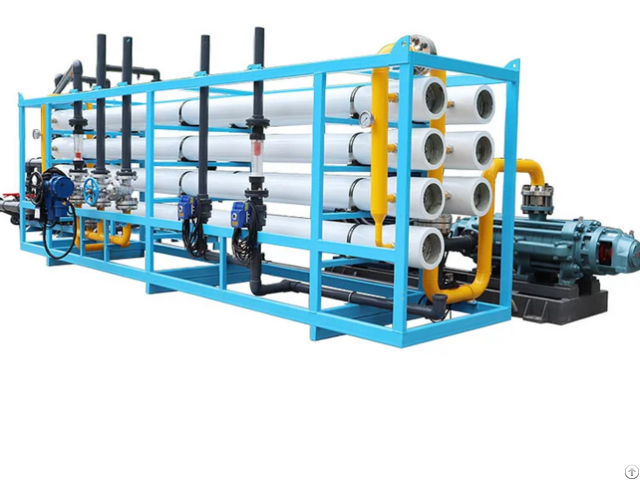

High-Capacity RO Seawater Desalination Plant

Our industrial RO seawater desalination plants provide a capacity range of 2m³/hour to 2500m³/day.

For lower capacity needs, check out our commercial RO desalination machines.

How Does an Industrial RO Seawater Desalination Plant Work?

All RO desalination systems begin with a booster pump, which feeds raw water into pretreatment tanks.

Depending on capacity, the size and number of pretreatment tanks can vary.

Since seawater has a high TDS (Total Dissolved Solids) and is highly corrosive, we use FRP (Fiber Reinforced Plastic) or carbon steel materials for durability.

Key Pretreatment Components:

Sand Media Filter Tank – Removes suspended solids, sediment, and turbidity.

Activated Carbon Filter Tank – Eliminates chlorine, organic contaminants, odors, and unwanted colors.

Softener Tank with Ion Exchange Resin – Prevents scaling by reducing hardness.

Reverse Osmosis Seawater Purification System

The RO purification system removes: ✅ Dissolved salts

✅ Heavy metals

✅ Bacteria & viruses

✅ Organic & inorganic solids

✅ Proteins, dyes, and unwanted particles Step-by-Step Water Filtration Process

Pretreatment Stage: Filters out large suspended solids and organic contaminants.

Cartridge Filter Housing (Security Filter): Uses 1µm or 5µm PP filters to remove finer particles before entering high-pressure pumps.

High-Pressure Pump & Membrane Filtration: We offer Grundfos, Danfoss, CNP, or Chunke high-pressure pump options.

RO membranes from DOW Filmtec, Toray, Vontron, Hydranautics, and LG ensure 99% salt rejection.

Membranes available in 4040 and 8040 sizes based on system capacity.

Post-Treatment & Chemical Dosing: Anti-scalant & anti-fouling agents prevent membrane clogging.

pH adjustment, sterilization, and disinfection chemicals for improved water quality.

Optional CIP (Clean-In-Place) System extends membrane lifespan.

Industrial RO Desalination Machine Specifications

Membrane Sizes & Flow Rates for SWRO Systems What is a Reverse Osmosis (RO) Desalination System?

A reverse osmosis (RO) desalination system is designed to remove salt from seawater, making it usable for industrial, municipal, and drinking water applications.

Our industrial seawater desalination plants use RO membrane technology, which ensures 99% salt removal, delivering fresh and clean water efficiently.
