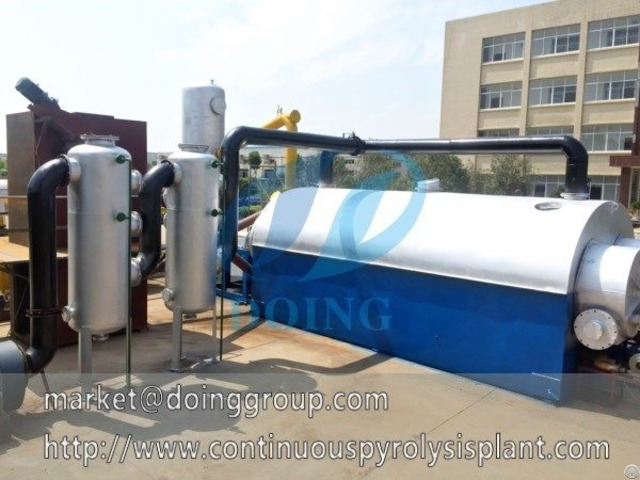

Doing New Tech Continuous Pyrolysis Plant - China

Doing latest fully continuous pyrolysis plant is designed to ensure safety, economy and environmental protection.

And this plant not only can work continuously for 24 hours.

but also feed in one side and dischage in another side.

Thecontinuous pyrolysis plant can deal with tire, rubber, plastic, medical waste and oil sludge.

Introduction of Doing latest continuous pyrolysis plant:

1, Tire pretreatment

Before pyrolysis, the whole tires need to be shredded into small pieces.

First, pull out the steel wire in tire sidewall; Then cut the tires into bulks.

If the tires diameter less than 1200mm, don’t need this step.

And can directly use next comprehensive shredder to cut into small pieces.

Crush the tire bulks or diameter less than 1200mm whole tires into 2-5cm small pieces.

2, Feed raw materials

Feeding tire pieces into reactor by feeding system.

3, Heat the reactor

Fire the fuel in the burning room, the fuel could be diesel, natural gas, LPG.

The hot air will flow into the reactor for heating.

When the inner temperature of the reactor reaches to 100 degree, the oil gas will be generated.

Then goes into the buffer tank firstly.

In the buffer tank, the heavy particles will be liquefied into heavy oil and drop in the heavy oil tank.

The light oil gas rise up.

The buffer tank will reduce the oil gas moving speed and then goes into condensers uniformly.

4, Condensation

In the horizontal cooling system, the oil gas will be liquefied into fuel oil.

A large scale of oil gas will be liquefied into fuel oil and enter oil tank.

In the hydroseal, the combustible gas will be desulfurated and cleansed.

Then recycled to the reactor to provide heat, saving a lot of fuel.

Hot smoke gets out from the reactor through smoke cleaning system.

system.

The clean smoke can meet the EU environmental protection and emission standards.

5, Discharge

The cabon black with steel wire will be discharged by the auto screw discharger.

Through the magnetic separator, the steel wire and carbon black will be separated, and transported into the storage tank.

Final products of Doing latest continuous pyrolysis plant:

And the final pyrolysis products have many uses.

For example, the tire pyrolysis oil can be used as industrial fuel materials for burning, or further refined to diesel or gasoline by waste oil to diesel refining machine.

The carbon black from tire pyrolysis can be used for construction bricks with clay or used as fuel.

The steel wire can be re-sale or reprocessing.

There is also a little combustible gas producing in the process, the gas can be recycled to heat the reactor as fuel, which will save energy for the whole working process.

Advantages of Doing latest continuous pyrolysis plant: 1 - Continuous pyrolysis plant adopts the screw feeding sealing system technology, which is hold by the company’s invention patents, hot air heating furnace circulating heating technology, heat drying technology with high heat exchange efficiency and capacity.

2 - Impeccable electrical control system save labor costs.

3 - Three waste utilization reasonable recovery can basically realize of zero emissions, safety and environmental protection.
