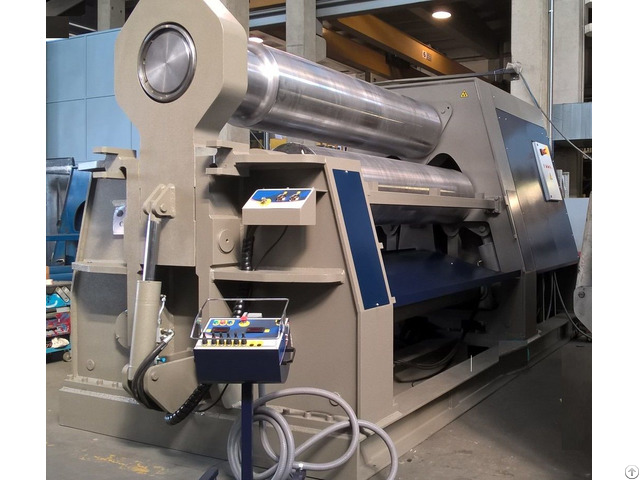

Three Rolls Bending Machine 3100 X 65 50mm - Italy
price: check with company for price
Made in Italy - Brand NEW MG G 3065 I quick delivery Technical data Rolling capacity mm.
65
Pre-bending mm.
50
Installed power hp.
75
Top roll diameter mm.
630
Side rolls diameter mm.
560
Bending force Tons 860
Total Torque Kg/DaN 15, 000 Machine Size: 3000W x 6400 L x 3360 H - Weight 40 Tons Capacity based on full width x 3 times the top roll diameter at 260N/mm2 YP - 3 Motorised rolls/ parallelism by massive torsion bars/planetary system
- Double pinch swing arm movement - Movable Console - Hardening Rolls 55-60HRC - Rolls 42CrMn Forged steel - Digital readouts ( ea.
axs ) - Conical bending system - Hydraulic system for opening the machine and ejecting the tube.
- Safety system to conform with EC Rules - Permanent lubrication system - Planetary movement of the rolls to avoid any kind of friction and to guarantee height precision for the machine life.
- Parallelism control by means of massive torsion bars to guarantee height precisions also where the newest hydraulic systems fail.
- All parts made in the E.U. and with ISO quality certification
Company Contact:
- Posted By: MG srl
- Phone: 390172691327
- Address: Via Ceresolia, 20, Fossano , Italy
- Email:
- Website: https://mgsrl.com
Published date: June 11, 2018
- Business Description: Italian Manufacturer of hydraulic plate bending rolls, manual Three roll
double pinch plate bending machines and CNC, four roll hydraulic plate
bending machines.
Our plate rolls range from 1000mm to 8000mm length,
and from 1mm up to 200mm thickness cold rolling.
MG are the world leader
today with a production of over 320 plate rolls per year with 50% of
Europes market share
