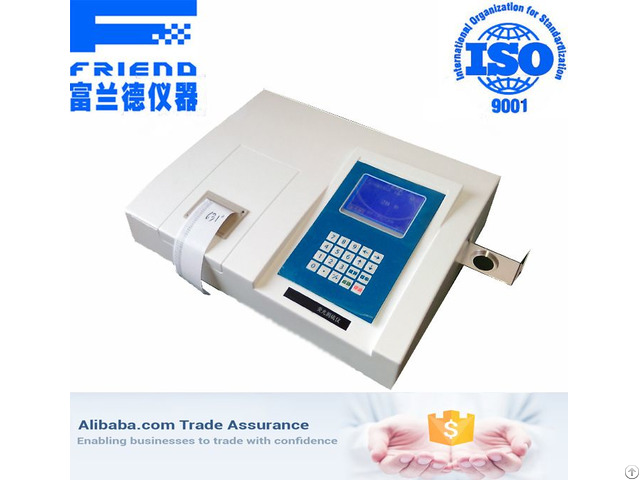

X Ray Sulfur Analyzer - China

Scope

Petroleum product sulfur content analyzer (X-ray spectroscopy) is in accordance with People's Republic of China standard GB / T11140, GB / T17040, ASTM D4294 requirements specified in design and manufacture of this instrument for the determination of trace sulfur content of petroleum products.

Because it uses physical analysis methods, with fast analysis without complicated sample pretreatment, high precision, human error is small, low labor intensity of operators, no pollution, it has been widely used and generally replace other measuring sulfur in the international arena The analytical method.

Features

1, with full English operating system, the man-machine interface friendly exchanges.

2, short detection time, automatic test results within 30 seconds; automatic C / H ratio correction, for a variety of samples;

3, large-screen LCD, automatic print measurement data;

4, using the X-ray tube excitation, the instrument can be long-term use, without affecting the source attenuation;

5, the use of physical methods, the analysis does not touch, do not destroy the sample, no chemical reagents;

6, instrument with integrated design, easy maintenance;

Technical Parameters

1, the scope of analysis: S analysis range can be adjusted by the calibration curve of the selected method.

2, the scope of analysis width: S% max-S% min≤9.999%; such as oil: S: 0.001 ~ 9.999%.

3, the inherent error, accuracy of analysis: such as oil: in line with the national standard GB / T 17040, at the same time meet the relevant requirements of American National Standard ASTM D4294.

4, system analysis time: 1 to 999 seconds, the recommended value of 60 seconds.

5, detection limit: 10ppm

6, using the conditions: ambient temperature: 5 ~ + 40 ℃, Relative humidity: ≤85% (30 ℃), Power supply: 220V ± 20V, 50Hz.

7, Total power consumption: <150W.
