Wire Winding And Torsion Testing Machine - China

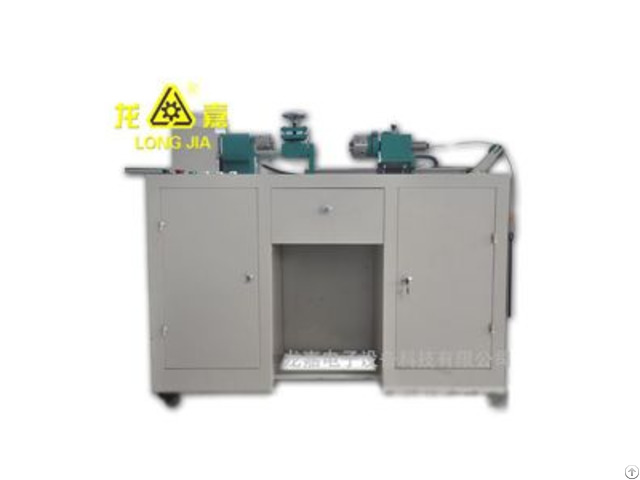

Wire Winding And Torsion Testing Machine

aluminium cable steel reinforced

Wire and Cable Detection Equipment

Wire Winding Testing Machine, Torsion Testing Machine

Technical parameters

1 - Aluminum wire: Ф3mm-6mm, which can be wound with mandril (manual winding is suggested if the diameter is below 3mm)

2 - Steel wire: Below Ф4mm 3 - Working width of tension disc 200mm

4 - Length of mandril 90mm

5 - Winding speed 0-60min (adjustable)

6 - Diameter of mandril (configuration is required in the new standard):

Ф1.24mm Ф2.25mm Ф2.75mm Ф3.0mm

Ф3.5mm Ф3.72mm Ф4.25mm Ф4.75mm

Ф6.75mm Ф11mm Ф12mm Ф14mm

Ф17mm Ф19mm

7 - Torsion speed 0-60/min (adjustable) 8 - Motor: Power 0.185KW

9 - Rated voltage 200V 50HZ

10 - Range of torsion count 999999

11 - Torsion weight： 5×5Kg

JR-N wire winding and torsion testing machine is a testing machine used to test the toughness and adhesion performance of overhead stranded wire frame and (or) reinforced galvanized steel wire, which meets the requirements of GB/T3428-2002 Galvanized Steel Wire for Overhead Stranded Wire: Winding and Torsion Test.
