Winner 319b Industrial Spray Laser Particle Size Analyzer - China

Product Description

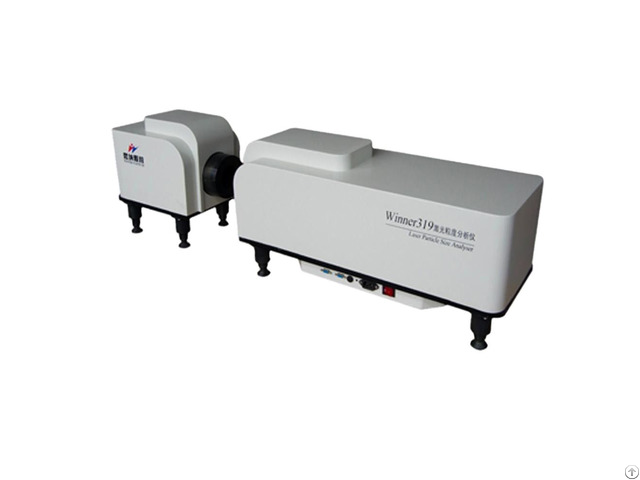

Winner319B is a specially designed and developed bench-top spray laser particle size analyzer for droplet size test.

This instrument adopts Fraunhofer diffraction principle and parallel light path design with high-performance and high-power laser, which can meet the requirements of droplet test.

And the test range can be adjusted according to the customers’ requirement.

Ability to resolve droplet size fluctuations observed during rapid combustion in automotive fuel injection systems.

Offers flexible triggering options.

Routine Atomizer Characterization Measuring the droplet size produced by an atomizer system is key to improving process understanding and understanding of the environmental impact of spraying, such as in coatings or agrochemical applications.

High concentration measurements are made in the spray plume, providing the real-time data needed to track particle size changes during nebulizer operation.

Main Features 1 - Exclusive patented technology

Using representative parallel optical testing technology and spectral amplification technology, large-scale expansion in a limited space is achieved.

In addition, multiple auxiliary integrated photodetectors have been added, which can effectively collect scattered light from all angles within the test range, achieving full range test accuracy and reliability.

2 - The spray laser particle size analyzer adopts a unique airflow protection device

It has an airflow protection device that can effectively protect the lens and avoid contamination of the lens by droplets during the test.

3 - The spray laser particle size analyzer adopts a split structure design.

The split structure and adjustable test area can meet the needs of spray testing under any conditions, and have the characteristics of non-contact measurement and no interference.

4 - The spray laser particle size analyzer adopts a stable automatic optical path alignment system

Eliminates adjustment difficulties caused by optical path movement, and the optical path alignment system can be corrected with one click 5 - Multiple particle size distribution models

Free choice of standard model, RR distribution and lognormal distribution.

Convertible volume distribution and number of individuals Models

Winner319B

Executive Standard

ISO13320-1：1999, GB/T19077.1-2008, Q/0100JWN001-2013

Instrument Structure

Split-Type Testing Range 0.1/1μm-1000μm

Channels 75pcs LD Pump Laser；λ=532nm, p>40mw

Sampling Mode

Open Style

Testing Area Length

0.1-10m(according to sample test requirement)

Lens Protection

Double gas episodic

Outer Dimension

Launch port: L369*W295*H360mm

Receive port: L858*W295*H360mm

Weight

13+24kg
