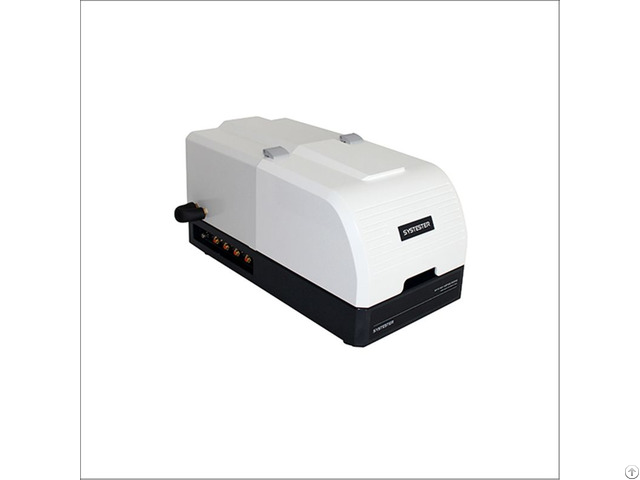

Weighing Method Water Vapor Permeability Testing Machine For Building Materials - China

Weighing Method Water Vapor Permeability Testing Machine For Building Materials Products Details Application: WVTR is based on the electrolytic sensor method and available for the water vapor permeability test of flexible films, sheeting and packages.

It can test 3 specimens in one operation with independent results.

Films: Plastic films, aluminum foil, aluminized films, plastic composite films, paper-plastic composite films, coextruded films, aluminum foil composite films and many others.

Packages: Plastic, rubber, paper, paper-plastic composite, glass and metal packages, e.g. red wine bottles, blister, various plastic bottles, Coke bottles, peanut oil packages, Tetra Pak materials, vacuum bags, metal three-piece cans, plastic packages for cosmetic, soft tubes for toothpaste, jelly and yogurt cups.

Weighing Method Water Vapor Permeability Testing Machine For Building Materials Features: — Electrolytic sensor method — Own technology — Film and package test — 3 specimens test simultaneously and independently — One-button test, test automatically in whole process — Multiple test modes optional — Data curves display — Computer control — Digital flow adjustment — 3 Chambers with 3 temperature sensors — Environment temperature and humidity sensor inside — Chambers water bath technology — Unit based on embedded system, 24bit Δ-Σ AD — Pressure, ppm water sensor and temperature overload protection — Traceable reference film calibration — Supports DSM system (DSM, lab data management system) Weighing Method Water Vapor Permeability Testing Machine For Building Materials Technical indexes: Test range： Film 0.001-52 g/m2·24h (Standard) 0.01-1100 g/m2·24h (Optional) Resolution 0.001 g/m2·24h Package (optional)

0.0001~0.5 g/pkg·d Resolution 0.00001g/pkg·d

Specimen amount 3 specimens, independent Temperature range 5C – 95C

Temperature accuracy ±0.1C

Humidity range 0%RH, 35%RH-90%RH, 100%RH, standard condition 90%RH

Humidity accuracy ±1%RH

Test area 50 cm2 Specimen size Film size

Thickness less 5mm Package Max size D120mm * 400mm Carrier gas 99.999% Nitrogen

Carrier flow 0~200 ml/min

Gas interface 1/8inch

Power supply AC 220V 50Hz

Dimension 730 mm * 590 mm * 350mm

Net weight ​ 56kg
