Waw Series Electro Hydraulic Universal Testing Machine - China

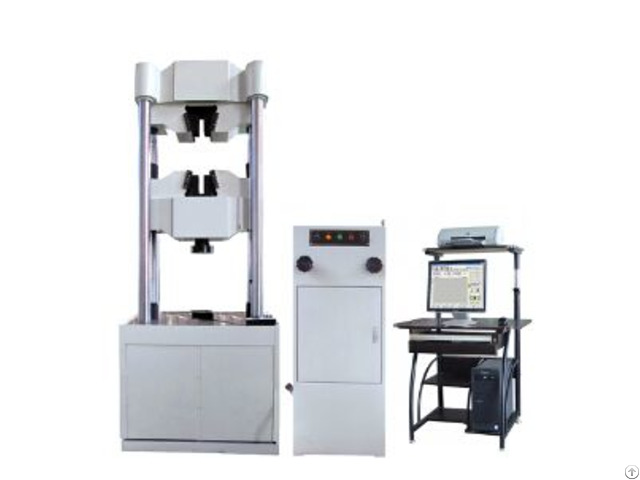

WAW-E series computer control electro-hydraulic servo universal testing machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing strength.

Equipped with the electronics, computer & software packages, it is capable of controlling the test procedures as the pre-set programs, and also displaying, recording, processing and printing the test results; the testing curves can be drawn automatically in real time.

It is simple, easy to operate, versatile in the applications for metallurgy related industry such as steel mills & alloy, reinforced bar etc, aircraft industry, research institutes, laboratories, calibration institutes etc.

Applied Standard

 Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.

 Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.

 Safety: This machine shall conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN 61010-1

 Tensile test at room temperature DIN EN 10002-1, ISO 6892, ASTM A370, ASTM E 8

 Tensile test on reinforced steel: ASTM A615/A615M, ISO 10606, EN 10080

 Compression test DIN 1048, ISO 6784, ASTM C39, ISO 4506

 Tensile test for bolts ASTM F606-07

 Tensile Tests for Strands ASTM A416, BS 5896

 ASTM D143 Test Method for Shear Modulus at Room Temperature

 ASTM A185/A185M-07 Standard Specification for Steel Welded Wire Reinforcement, Plain, for Concrete.

Load Frame

Featuring a dual test space with higher stiffness to meet extensive test applications, the load capacity is available from 300kN to 3000kN.

 Compact design with rigid four-column & two-lead screw construction.

 Dual workspace design: upper for tension test (expandable for peel & tear test etc), lower for compression, bending and shearing tests, which is quite convenient for different kinds of tests.

 The frames all incorporate human factor consideration in the design to ensure safety, improve testing efficiency, and reduce operator weariness.

 Cylinder mounted at the bottom of the machine to guarantee the working gravity.

 Test space can be extended according to the length & elongation of specimen and related test requirements.
