Vibration Sensor Discription:

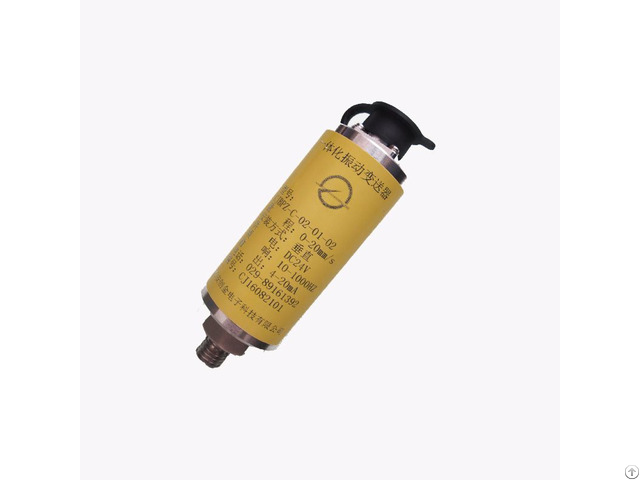

CJVB all-in one vibration sensor integrates piezoelectric acceleration sensor with precision measuring circuit that composes high precision vibration measure system.

The sensor can connect with DCS, PLC or other equioment directly.

It is ideal for measuring vibration of fan, motor, water pump factory equipment etc.

Features: Wide measure range

All material is Stainless steel Various port type Protection Grade: IP65 Performance Parameters:

Frequency Response: 5-1000Hz Natural Frequency of Vibration: 10Hz

Measurement Range: Displacement Range: 0-200um, 0- 500um, 0-1000um (opitional) Speed Range: 0-10.0mm/s, 0-20.0mm/s, 0-100.0mm/s (optional)

Working Voltage: 24V DC Output Currency: 4-20mA

Output Impedance: ≤500

Signal line Specification: wires (DV24V power supply&4-20mA output uses these 2 wires together) 3 wires (earth wire, power supply wire, output wire)

Max Acceleration: 10g

Measurement Direction: vertical or horizontal

Working Ambient: Temperature: -40°C to 85°C, Relative humidity ≤90%

Size: φ45×80(mm)

Weight: 450g

Thread: M10×1.5

Protection Grade： IP65
