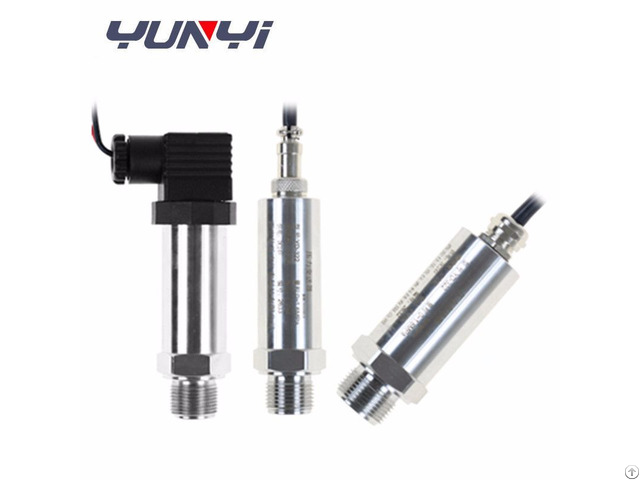

Vacuum Waterproof Pressure Transducer With Great Price - China
price: 37.00 Dollar US$
vacuum waterproof pressure transducer with great price using imported vacuum diffused silicon pressure sensing chip, all stainless steel seal structure, with good moisture resistance and excellent media compatibility.
Products with
high resolution and accuracy, long term stability.
Suitable for medium pressure and vacuum of
weak measurement and control applications, such asbottles of paint, beverages and other liquids, cans material leak.
Specification vacuum waterproof pressure transducer with great price 1 - Range: 0 ~ -1, -10, -50, -100KPa, -100KPa, -50KPa ~ 0, 2 - Overall accuracy: 0.1% FS, 0.2% FS, 0.5% FS
3 - Output signal: 4 ~ 20mA (two-wire), 0 ~ 5V, 1 ~ 5V, 0 ~ 10V (three-wire)
4 - Supply voltage: 24DCV (9 ~ 36DCV)
5 - Medium temperature: -20 ~ 85 ℃
6 - Ambient temperature: room temperature (-20 ~ 85 ℃)
7 - Load Resistance: Current Output: maximum 800Ω; voltage output: more than 50KΩ
8 - Insulation resistance: more than 2000MΩ / 50VDC
9 - Response time: <1ms
10 - Sealing class: IP65
11 - Long-term stability: 0.1% FS / year
12 - Vibration effects: in the mechanical vibration frequency 20Hz~1000Hz, the output changes less than 0.1% FS
13 - Electrical connection: Hirschmann connector (other optional)
14 - Threaded connection: M20 × 1.5, other threads can be designed based on customer requirements
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co,.ltd
- Phone: 17391772083
- Address: Inland Port Mansion, No.9 Gangwu Road, Xi'an International Trade & Logistics Park, Xi'an City, Shaanxi Province, China
- Email:
- Website: https://yunyiyibiao.en.alibaba.com/
Published date: June 5, 2018
- Business Description: Xi'an Yunyi Instrument Co., Ltd.,
specializing in Piston dead weight tester, pressure calibrator, hand test pump, Pressure gauges / transmitters, level meter , flow meter, temperature and ph instruments with more than 10 years.
