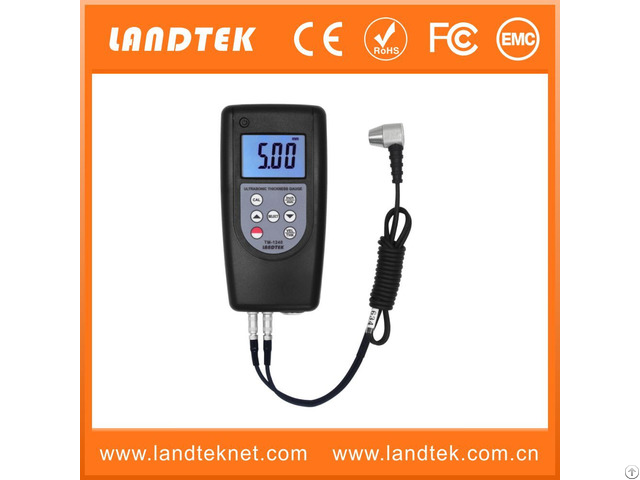

Ultrasonic Thickness Meter TM-1240

Applications:

Used for measuring thickness and corrosion of:

*Pressure vessels, chemical equipment.

*Boilers, oil storage tanks, etc.

in industries of petroleum.

*Shipbuilding, power station, and machine manufacturing.

*Measture the cast iron thickness, aluminum thickness, quartz glass thickness, PVC thickness, PE thickness, red copper thickness etc.

Features:

* Using the latest high performance and low power consumption microprocessor technology.

* Automatic memory material code and sound velocity value, convenient to use.

* Use USB data output and RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

Details:

Display: 4 Digit, 10 mm LCD

Operating Principle: Ultrasonic

Measuring Range (metric / Imperial): 0.75~400mm (45# steel) (Depend on Probe)

Battery Indication: Low Battery Indication

Sound Velocity: 1000~9999 m/s

Lower Limit Steel Pipes: Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer

Calibration Block: Included

Resolution: 0.1mm / 0.01mm / 0.001inch

Accuracy: ± (0.5%n + 0.1)

Automatic memory material code and the value of sound velocity

Power off: Auto Power off & Manual Power Off

Operating Conditions: Temperature: 0~40 °C, Humidity: < 85 %RH

Power Supply: 4 x 1.5 V AAA (UM-4) Battery

Dimensions: 140 x 72 x 34 mm

Weight: 185 g (Not Including Batteries)

Accessories:

Standard Accessories:

1 - Main Unit

2 - 5MФ8 Standard Sensor

3 - Coupling Agent

4 - Carrying Case

5 - Operating Manual

Optional Accessories:

1 - 6M Φ6 mm thin Material Probe :

Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C

2 - 5M Φ12 mm High Temperature Probe:

Measuring range (steel): 1.0~225.0 mm (normal temperature)

Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C

3 - Curved Surface Probe

4 - USB, RS-232C data cable with software

5 - Bluetooth data output with software
