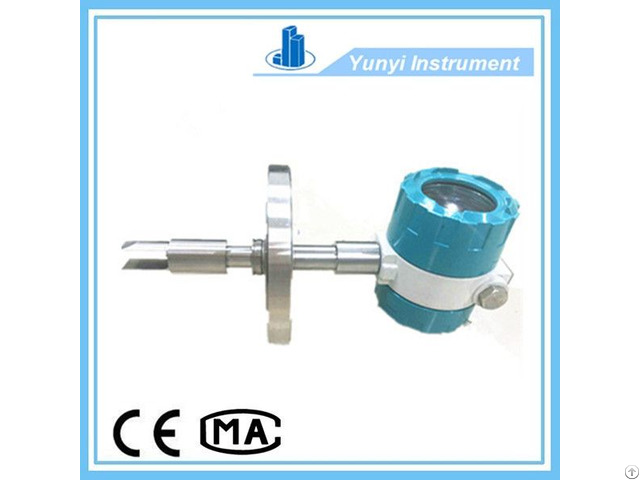

Tuning fork oil density meter

Product Description Fork density meter Principle:

Fork sensors one pair fork ceramic sheets

A piezoelectric ceramic is responsible for generating vibrations

A piezoelectric ceramic is responsible for collecting vibration

The fork is always vibrate in the resonant frequency of vibration

Fork in different densities, the resonance frequencies was different, .

according to the relationship between the different vibration and density to calculate the density

The resonance frequency of the tuning fork is between 1600-2400

The higher the frequency the smaller density.

Fork density meter parameter:

1 Density range : 0-3 g / CM3 (3 /2.5/ 2 /1.5/ 1)

2 Output: 4-20 mA 4-wire ( 2-wire system can not be used) 3 Accuracy: 0.001 g / cc, with a resolution of 0.0001 g / cc

4 Insertion depth : (flange distance to the end of the fork, minimum 125 mm, up to 2 meters)

5 Wetted material: stainless steel, Hastelloy C22, 400 manganese alloys, titanium, etc.

6 Fork Coating: standard, PTFE or electrolytic polishing

7 Power supply: 20 - 28 VDC, 35 - 45 mA

8 Operating temperature range: -50 ℃ ~ + 200 ℃

9 Maximum working pressure: 20Mpa

10 Fluid viscosity range: 0 - 20000 cP

11Temperature coefficient: 0.1 kg / m3 / ℃ (corrected)

12 Process connection: 1.5 "NPT threaded connection; DIN 50 PN40 and PN100 flange connection;

13 Protection: IP65

14 Display: Up density value, the density value can be switched to kg / cubic meter or g / cc by unit keys.

Down display a temperature value (measured medium temperature ) temperature is original PT1000

15 Accessory: temperature of 4-20 mA output signal

16 The internal circuit board with automatic filtering function, other vibrations like pipe vibrations can eliminate away from the side of circuit and software, whichensure accuracy.

Dimension: Fork density meter Advantage:

1 - Using high precision measuring density, is mainly used in power plant.

Can not be affected by temperature, pressure and flow rate, the factor affecting measuring error

Is less.

Fork density meter Features: 1 - Adopting Germany piezoelectric ceramic piece, crossing gold process for ceramic piece to increase the inoxidizability of ceramic piece, thus increasing the service life of densitometer.

2 - Fork vibration original piece adopts Japan's high performance original piece, in which installed 24 AD converter, and the accurate recognition for frequency is 0.01HZ, to ensure the sensitivity and accuracy of density.

3 - Fork density calibration adopts national density standard solution, to ensure the source and accurate of density.

4 - The current circuit is independent of fork vibration circuit, there is isolating anti-interference inner, reducing the influence to instrument from disturb.

5 - There is set density three point quick calibration, range adjust, current calibration etc function, to meet on-site working demands.
