The Digital Track Gauge - China

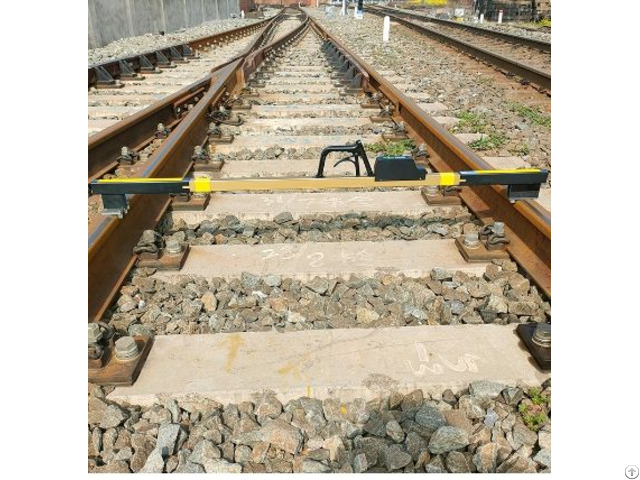

PRODUCT DESCRIPTION Digital Track Gauge can directly read the measurement values of railway track gauge, super elevation, check rail gauge, back to back distance and flangeway clearance through microelectronics, embedded and sensor technologies and OLED display screen.

FEATURE 1 - Large LED backlit display: especially suitable for day outside and dark night 2 - Quick calibration operation: simple measurement process 3 - Large capacity battery: long standby time 4 - Accurate measurement: keep long-term stability 5 - Temperature compensation : working temperature is -30~+55℃ 6 - Insulated design 7 - Anti-electromagnetic interference 8 - Waterproof: could use in rainy day 9 - power saving function: no operation within 15 minutes, the system will automatically shut down.

10 - Approval by CHINA ACADEMY OF RAILWAY SCIENCES

11.1000mm, 1067mm, 1435mm, 1520mm, 1600mm, 1676mm track gauge is available.

SPECIFICATION Model(1435mm)

GJC-TJG1

Track gauge(mm)

1384-1470

Gauge rail check gauge(mm)

1364-1450

Guard rail face gauge(mm)

1344-1430

Superelevation measuring range(mm)

-200~+200

Flangeway Clearance(mm)

20-107

Superelevation division value(mm)

0.10

Track gauge division value(mm)

0.1

Track gauge max indication error(mm)

±0.25

Superelevation error(mm)

±0.45

Application rail line

railway speed less than 250km/h

Company Contact:

• Posted By: Wuhan linkage track equipment co.,ltd

• Phone: 17386663369

• Address: Room 1007, Block B, Building 1, Huagong Science Park Modern Service Industry Base, University Park R, WuHan , HuBei , China

• Email:

• Website: https://www.linkagecn.com/

• Business Description: We are a new and high-tech enterprises which integrates R&D, production and sales service, owning advanced production equipment, perfect inspection instrument and R&D center with strong technical force.

  Specialized in production of railway measuring equipment and track maintenance machine, such as rail tamping machine, rail drilling machine, rail cutting machine and other railway related products.
