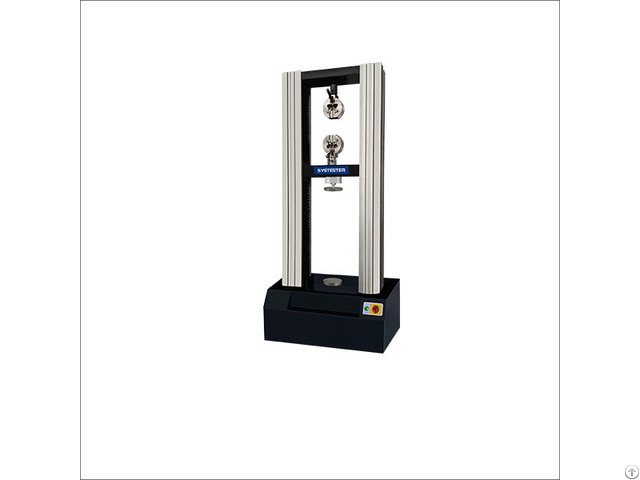

Tensile Tester Special Drawing Machine For Pharmaceutical Packaging - China

Products Details Application Applies to plastic films, sheets, rubber, laminated films, extrusion films, foils, paper, medical patches, release paper, non-woven fabrics etc testing of various items, such as tensile, break force, elastic modulus, elongation, seal strength, T-style peeling strength, 90 peeling strength, 180 peeling strength, widely used in food & pharmaceutical industries, quality inspection departments as well as research and development institutions.

High Precision Special Drawing Machine for Pharmaceutical Packaging Material Tensile Tester.

High Precision Special Drawing Machine for Pharmaceutical Packaging Material Tensile Tester Features

1: 3 patents and 2 counts of software copyright registration.

2: Bilingually controlled by computer and embedded system.

3: Highly accurate load cell, Bi-direction test.

4: High performance servo drive(Made in Japan).

5: Test speed can be preset freely through software.

6: Selectable load cell: 50N, 100N, 250N, 500N, 1000N.

7: Silence running, <25db@1000.

8: ISO, ASTM standards test available and non-standard test available.

9: Electronic limit, computer preset, non-mechanical limit.

10: Overload protection, less power consumption.

11: DB9 RS232 communication port .

12: Tensilyst workstation support.

13: Tensile, break force, elastic modulus, seal strength, 90 peeling strength, 180 peeling strength test available.

14: Historical data traceable, system log.

15: 5 degrees user management.

16: Group test, auto multiple curves display, auto statistic calculation.

17: DSM system is optional(Laboratory Management Information System), easy to manage test data.

High Precision Special Drawing Machine for Pharmaceutical Packaging Material Tensile Tester Indexes Load range 50N, 100N, 250N, 500N, 1000N, 2.5kN.

(Customization available) Accuracy 0.03%FS max Max travel distance 1200mm.

Test speed 0.01mm/min – 1000mm/min.

Displacement accuracy 0.005mm.

Sample width 55mm.

(optional) Sample thickness 5mm.

(optional) Power supply AC 220V 50Hz.

(optional) Power consumption 300W.

(Max) Dimension 380mm(L) X 450mm(B) X 1309mm(H) Net weight 90kg.
