Tds 100m Modular Ultrasonic Flowmeter China - China

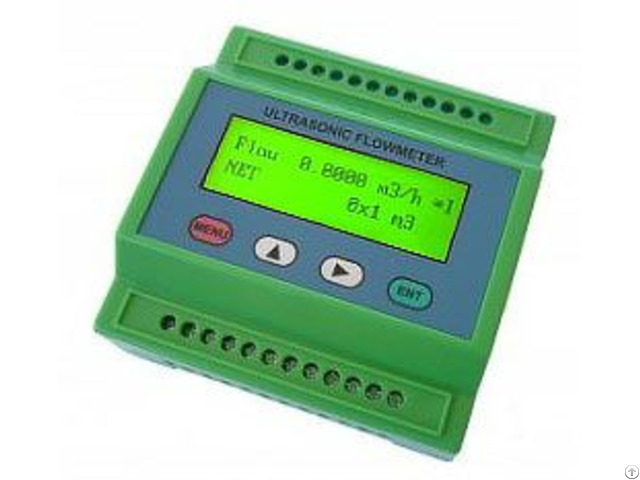

 TDS- 100M  Modular ultrasonic flowmeterÂ

Wide Application Its unique features, particularly low cost, small size, high performance, local display, make it the ideal choice for industrial automation, processing control, flow meter networking, composing multi- channel, high accuracy flow meter.

Â

The  TDS- 100M ( Teren- UFM- 100M) Modular type ultrasonic flow meter, flowmeters can work alone without a LCD and Keypad module, the module can be used alone as a flow meter.

Users can even integrate a number of the modules into a multi- channel flow meter that can measures up to several dozen of different pipes or a flow meter that has higher accuracy by measures the same pipe with all the channels, Features DescriptionÂ

High accuracy Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%

Wide measuring range Several types transducer for selection, pipe size from DN15mm to DN6000mm

Far transmission distance Connecting module and secondary meter through RS- 485 interface, transmission distance up to 1000m

Powerful Functions Current output: 4- 20mA, one channel, can be used for flow/ heat transmitter;

OCT output: two channels, can be used for flow / heat switch;

Current input: 4- 20mA, three channels, can be used for data collector;

Tri- wire resistance signal input ( PT100) : two channels, can be used for calorimeter.
