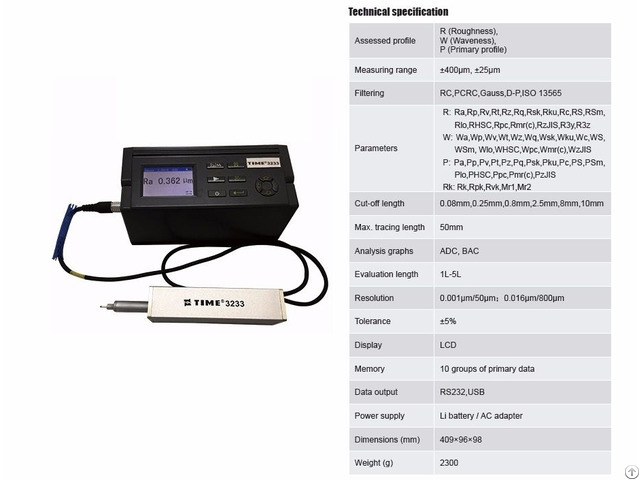

Surface Roughness Waveness Tester Profilometer Time 3233 For 90 Angle Measurement - China

Features

●Integrated design, easy and convenient to use, especially for narrow spaces down to 1.5mm

●55 kinds of measurement parameters conform to ISO/DIN/ ANSI/JIS standards for your convenience

●Rectangular driver for 90 angle measurements, even without lead.

●High accuracy in the surface roughness, waviness and primary profile testing.

●LCD displays digital and graphic information

●Numerous optional sensors to approach even the most inaccessible places, with or without leads

●Transfer to PC via RS232 with advanced PC Software TIMESurf for more analyzing management, and data can be stored in Excel file.

●Printer can be connected to print the digital and graphic information

●Wide measurement range up to 800 um, with the Accuracy 5 % and Repeatability 3%

●Adjust angle and lifting height by your choice.

●Full length waving testing with the maximum tracing length up to 50 mm.
