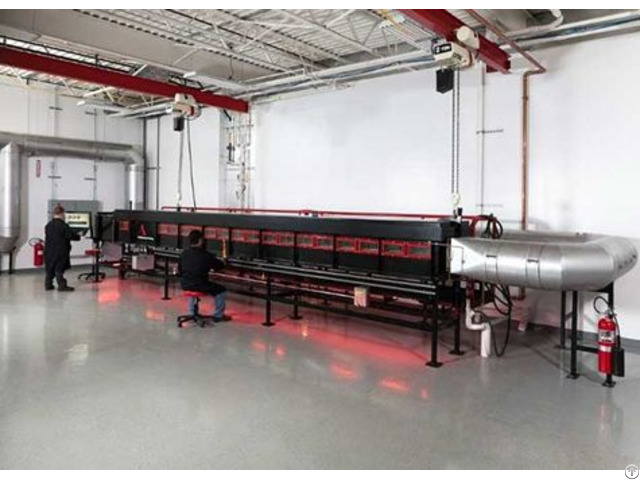

Steiner Tunnel Chamber - China

Model：FTech- NFPA 262 Standard：UL910, NFPA262, ASTM E84, UL723 Structure

1 - The combustion chamber is made of stainless steel .

The internal d mensions of the combustion chamber is 305mm x 451mm and long 7.6m with firebricks laying which has satisfactory insulation property.

2 - All internal fixtures are stainless steel which is rust resistant and corrosion resistant.

3 - A double-deck quartz glass observation window is used to observe the position of flame spreading.

4 - The height of the combustion chamber is suitable for personnel to see the burning state, sample installation adjustment .

5 - The overall design of the combustion chamber cover is made of stainless steel and is equipped with heat-resistant and thermal insulation material.

6 - Equipped with hoisting hook device.

7 - The sample holder is equipped with cooling water circulation support bracket, which is resistant to high temperature.

8 - Equipped with 304 stainless steel sealed sink.

9 - Dual burnerdistance from air inlet is 1320mm.

10 - The exhaust pipe is made of stainless steel which is good looking and corrosion resistant.

Suspension Hardware

1 - Two station lift at the same time.

Computer control ensures smooth lifting.

2 - Suspension Hardware can be moved up and down, left and right which is convenient for sample installation and commissioning.

3 - Equipped with safety protection platform, convenient for sample installation and commissioning.
