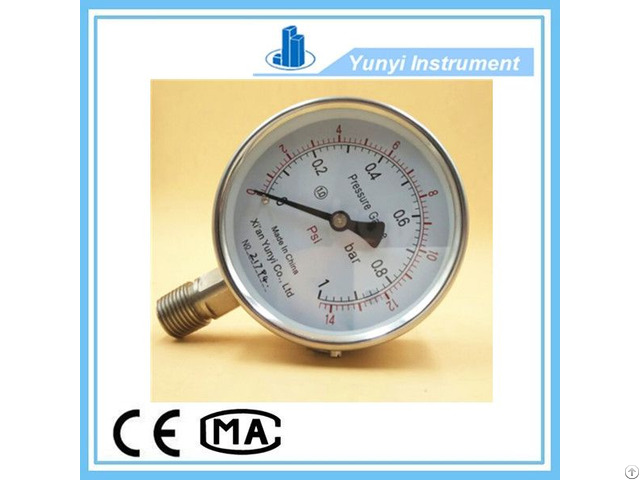

Stainless Steel Pressure Guage - China
price: contact company for price
The specification of Stainless steel pressure gauge:
Thread specification: M20 * 1.5
Characteristics: corrosion resistance to high temperature
Material: all the 316 stainless steel material
Medium temperature: 200 ° C or less
Use working temperature: -40 °C ~ 70 °C
Working pressure limit: not more than the upper limit of the instrument 2/3
Work environment vibration frequency less than 25Hz, amplitude less than 0.5mm
Instrument performance standards: Q/320211 DGH05-2004 technical data of Stainless steel pressure gauge :
type
YXC-100ZQ
YXC-150ZQ
YXC-100
YXC-150
YXC-100TQ
YXC-150TQ
structure
axial with front brim
Radial infinite
Radial with front brim range
MPa
-0.1-0.15;-0.1-0.3;-0 - 1-0.5;-0.1-0.9;-0.1-1.5;- 0.1-2.40-0.25; 0-0.4; 0-0.6; 0-1.0; 0-1.6; 0-2.5; 0-4.0; 0-6.0; 0-10; 0-16; 0-25; 0-40; 0-60;100
accuracy%
± 1.6
Contact electrical parameters
voltage
380VAC;220VDC
max current
1A
follow current
0.6A
Maximum power (non inductive load)
20VA
connector
X14K4P
Waterproof connector
X14K4P
Waterproof connector
X14K4P
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co., Ltd
- Phone: 00862988812007
- Address: Room 1203B, Inland Port Mansion, No.9 Gangwu Road, Xi an International Trade & Logistics Park, X, Xi'an , Shaanxi , China
- Email:
Published date: February 16, 2017
- Business Description: Professional manufacturer pressure transmitter, pressure gauges, pressure calibrator and deadweight tester.
And we also develop valves, flow meter, temperature transmitter, level transmitter, densitometer etc.
They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
