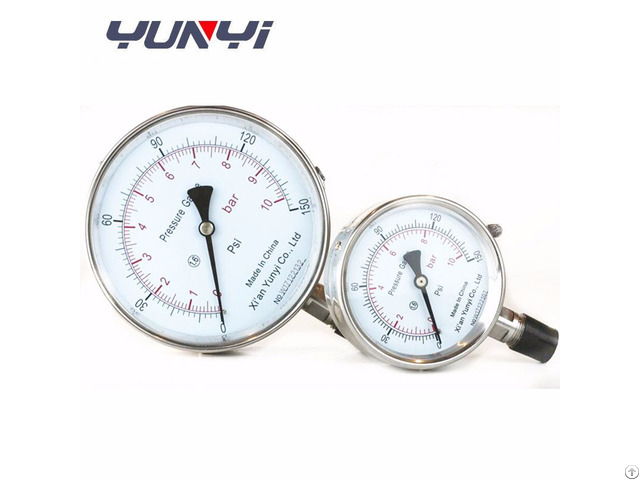

Ss Fuel Oil Pressure Gauge - China
price: 25.00 Dollar US$
Stainless steel pressure gauge is widely used in petroleum, chemical, chemical fiber, metallurgy, power plants, food and other industrial sectors of the corrosion-resistant, high temperature requirements of the process of measuring the pressure of various fluid medium.
Dial Size 60mm, 100mm, 150mm, 200mm
Pressure range -0.1~0Mpa~60~250Mpa
Case Material: 304 stainless steel, 316 stainless steel.
Connector thread: M14 × 1.5; G1 / 4; M20 × 1.5; 1/2 NPT and so on.
Connection threads NPT, BSP (G, PF), BSPT (ZG, PT)
Case form: containment structure, release after partition device
Connector stainless steel, Brass
Pointer: Normal
Dial plate single and dual scale (psi, kpa, mpa, bar, kg/cm2 avaible)
Table glass: plexiglass, safety double glazing
Seismic filling material glycerin 98% (optional silicone oil, fluorine oil or other categories)
Accuracy range 1%, 1.6%, 2.5%
Working temperture -40°C- 70°C(no liquid in the shell) -25 ~ 70 ℃ (filled in the shell)
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co,.ltd
- Phone: 17391772083
- Address: Inland Port Mansion, No.9 Gangwu Road, Xi'an International Trade & Logistics Park, Xi'an City, Shaanxi Province, China
- Email:
- Website: https://yunyiyibiao.en.alibaba.com/
Published date: June 8, 2018
- Business Description: Xi'an Yunyi Instrument Co., Ltd.,
specializing in Piston dead weight tester, pressure calibrator, hand test pump, Pressure gauges / transmitters, level meter , flow meter, temperature and ph instruments with more than 10 years.
