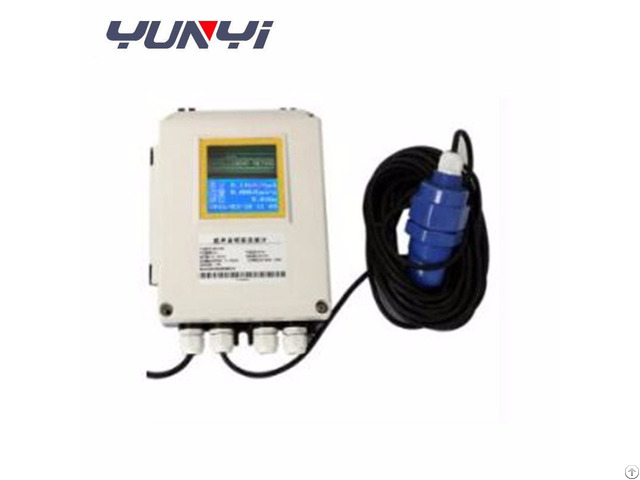

Split Type Oil Hydrostatic Ultrasonic Fuel Level Sensor - China
price: 280.00 Dollar US$
Specification Ranging range: 2m, 5m, 8m, 10m, 12m, 15m, 20m, 25m, 30m, 35m, 40m
Blind area: 0.3-1.5m (different from the measuring range)
Emission angle: less than 12 ° (different from the sensor)
Ranging accuracy: ± 0.3% F.
S
Display: Chinese and English large-screen LCD, color TFT (optional)
Minimum display resolution: 1mm
Temperature compensation: automatic temperature compensation
Operating frequency: 20 KHz ~ 200KHz (due to different models)
Site settings: through the machine keys to complete
Calibration: factory calibration, field calibration
Automatic switching in Chinese and English
Output (selected when ordering)
Analog signal output: 4 ~ 20mA (standard), 0 ~ 20mA, 0 ~ 5V, 0 ~ 10V Load> 300Ω
Digital communications: RS485, HART protocol, GPRS, MiniSD card data acquisition, USB (selected when ordering)
4-channel relay output
Relay contact capacity:
AC 5A 250V
DC 10A 120V
Operating voltage: AC220V or DC12-24V
Power consumption: <5W
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co,.ltd
- Phone: 17391772083
- Address: Inland Port Mansion, No.9 Gangwu Road, Xi'an International Trade & Logistics Park, Xi'an City, Shaanxi Province, China
- Email:
- Website: https://yunyiyibiao.en.alibaba.com/
Published date: June 4, 2018
- Business Description: Xi'an Yunyi Instrument Co., Ltd.,
specializing in Piston dead weight tester, pressure calibrator, hand test pump, Pressure gauges / transmitters, level meter , flow meter, temperature and ph instruments with more than 10 years.
