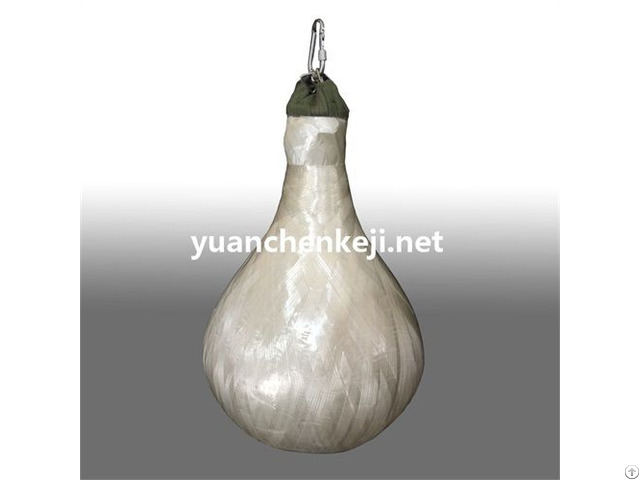

Soft Body Impactor 50 Kg Nf F 01 492 - China
price: 1000.00 Dollar US$
Standard Name:
Insulating glass used on multiple units
Reference Standard: NF F 01-492 Clause 10.8 and 16.8
Technical Data:
Weight: 50kg
Height: 600mm
Max Diameter of the Soft Body: 400mm
Hardened Glass Diameter: 3mm
Diameter of the Bag Top: 80mm
Diameter of the Bottom Leather Sewn Crown: 120mm Detailed Description:
A common bag for this procedure could be, but not necessarily, assembled as follows:
1 - Eight awning cloth sections assembled and sewn in a saddle-like manner.
2 - The dimensions of the filled bag are those of the volume composed of a 400 mm diameter sphere included in a cone with a peak that is 400 mm away from the center of the sphere.
3 - The bottom of the bag is reinforced by a 120 mm diameter leather sewn crown.
4 - The top of the bag is slightly truncated in order to provide an 80 mm diameter opening.
This opening is reinforced by an overstitched leather edge, onto which four equidistant rings are fixed that are included in a lifting ring.
5 - The bag is filled with hardened 3 mm – 8 mm diameter glass / iron balls (normally used for paint grinding) and have a tare weight of 50 kg + 0.5 kg.
Company Contact:
- Posted By: Qinhuangdao Yuanchen Hardware Co.,Ltd
- Phone: 863353899615
- Address: Northern Industrial Zone, Haigang District,, Qinhuangdao , Hebei , China
- Email:
- Website: https://www.yuanchenwujin.com/
Published date: July 2, 2020
- Business Description: Yuanchen supply nonstandard metal stamping, sheet metal working, sheet metal fabrication, laser cutting service, safety glass testing equipment, metal bracket, sheet metal bending, sheet metal forming etc.
Customized OEM service and Free Sample Confirmed.
Qinhuangdao Yuanchen Hardware Co., Ltd. is special in metal processing and nonstandard metal parts.
