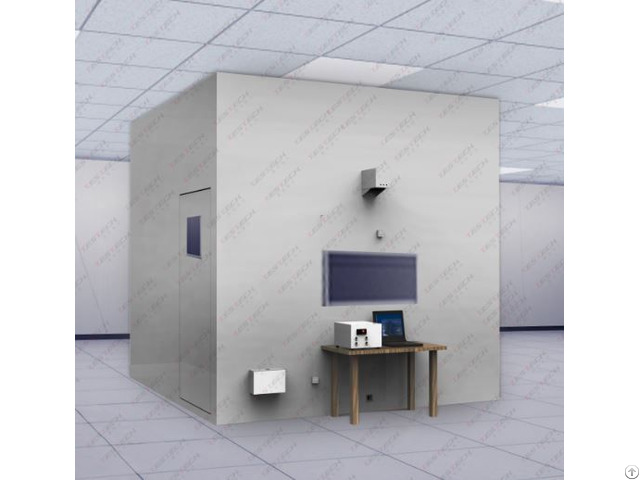

Smoke Density Test Apparatus - China

Model: FTech-IEC61034

Standards GBT17651.1-1998~ GBT17651.2-1998电缆或� ��缆在特定条件下� �烧的烟密度测定方 法。 IEC61034-1: Measurement of smoke density of cables burning under defined conditions part2: Test apparatus.

IEC61034-2: Measurement of smoke density of cables burning under defined conditions part2: Test procedure and requirements.

BS 6853 Structural features:

1, The burning room is composed of a cubic enclosurel with long, wide and high 3000mm 30mm, and the internal material is SUS 304 stainless steel;

2, The internal toolings are all made of stainless steel, corrosion-resistant;

3, The total area of the vent is 50cm2 10cm2, it is opened during the test, baffle height is 1000mm;

4, Equipped with wire and cable test stands and hang-heavy weights according to standard requirements;

5, Test room has a glass observation window on the door, and the opposite side of the door is provided with a sealed transparent window (minimum 100mmx100mm), which can transmitting light for the measurement system.

It's about 2150mm100mm high from the ground;

6, Photocell and the light source is positioned at the center of each window on two walls; Smoke Density Test System

1, Llight source: clean crystal lamps and tungsten halogen lamps, 2900K color temperature; power 100W, DC12V, nominal luminous flux 2000lm ~ 3000lm;

2, Smoke density test: measured optical density range of 0% to 100%;

3, Special light source of smoke density and high resolution photoelectric tube receiver can be installed on the external wall;

4, Test room equipped with doors and windows sealed structure;

5, The standard power is 100W and voltage is DC 12V for the light source;

6, Optical calibration system: 0 to 100% point calibration;
