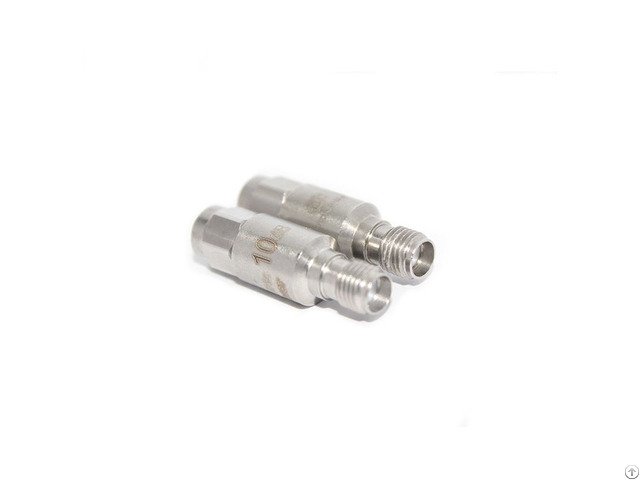

Sma Coaxial Fixed Attenuator Dc To 6ghz 2w 10db - China
price: 7.00 Dollar US$
SMA coaxial fixed attenuator, DC to 6GHz, 2W 10dB Attenuator
Technical Parameter for your reference:
Working Frequency(GHz) DC-6
Decrement(dB) 10
Attenuation Accuracy(dB) ±1
average power(W) 2
VSWR ≤1.25
Impedance(Ω) 50±10
Interface Type SMA - SMA female
Operating Temperature(℃) -10 - +70
Dimensions Φ9.5*30mm
standardization MIL-C-39012
Company Contact:
- Posted By: Zhongji Technology Group Co., Ltd
- Phone: 13823281261
- Address: Liutang Business Building A, No.21,Qianjin 2nd Road, Ban´an district, Shenzhen city, Guangdong Provi, shenzhen , guangzhou , China
- Email:
- Website: https://chbutc.com/
Published date: December 8, 2021
- Business Description: Our main products include: GNSS Multi-System Satellite Signal Simulator, GNSS Multi-System Satellite Signal Transponder, Ultra-Wideband Antenna Array Compact Range TEM Cell, EMC Shielding Box, EMC Shielding Room, Millimeter Wave Connector and Cable Assembly.
We always act in accordance with the management idea of "Innovation drives Development, Quality casts Soul".
We innovate continuously according to customers' requirements,while at the same time exceed customers' expectations.
We have standardized and diversified products to save customers' testing costs.
As well as this we have a variety of complementary products and automation system equipment that helps to solve the problem of complex product testing and model selection, thus saving the purchasing time of customers.
The company has regarded quality as life for more than a decade, with the Certification of IS09001: 2015 International Quality Management System by CEPREI China and CE Certification.
We possess a number of world advanced testing equipment E5071C, ROSH testing equipment, High-Low temperature test chamber, salt spray test and vibration test.
