Double cavity magnetic flap liquid level gauge

side mounted magnetic float level gauge

magnetic float level gauge plant

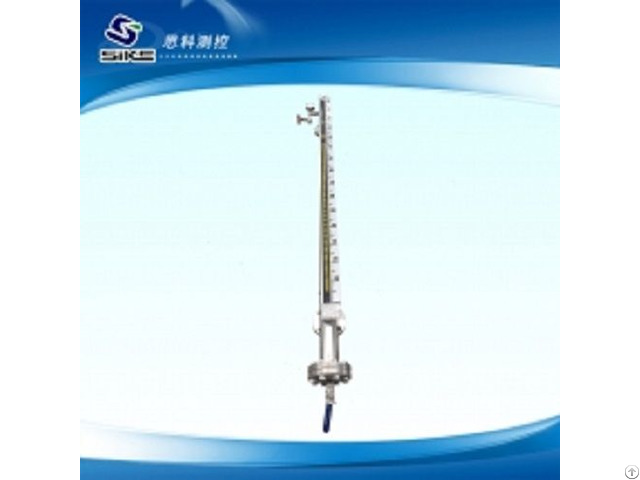

Product name: double cavity magnetic flap liquid level gauge

Product code: 155757-647

Views: 575

Processing custom origin: in kaifeng

Magnetic flap models: double cavity liquid level gauge

Type: the level

Level of accuracy: plus or minus 10 mm

Pressure range: 0 ~ 16 mpa

Double cavity magnetic liquid level gauge is suitable for high temperature and high pressure liquid container turning, the position of the measurement and control.

Clearly indicates that the height of liquid level, direct display striking, indicator and completely isolated storage tank, the use of safe, reasonable design, simple structure, convenient installation and reliable, stable performance, long service life, low maintenance cost, easy installation and maintenance, etc.

Double cavity magnetic flap liquid level gauge is divided into top mounted magnetic float level gauge and side mounted magnetic float level gauge (also called float level gauge and magnetic flap level gauge)

Users can according to the requirements of the project, cooperate with remote transmitter use, can be realized on the digital display, as well as the standard of 4 ~ 20 ma output far eastone electrical signals, to match the recording instrument, or the needs of the industrial process control.

Can also be used with magnetic control switch or close to switch, etc, the liquid level monitoring alarm and control into the liquid.

Product features:

1, precision manufacturing, strong and durable

2, special structure and material design

3, high definition liquid level indicator

4, flexible installation and the process connection

5, can form a complete set of switch and transmitter

6, good stability, full, zero long-term stability can amount to 0.1% FS/year.

Within the scope of the compensation temperature 0 ~ 70 ℃, the temperature drift less than 0.1% FS, throughout the allowed working temperature range is less than 0.3% FS.

7, with protection, current limiting protection circuit, the will not damage the transmitter is negative when installation, exception to send automatically within 35 ma current limit.

8, solid structure, no moving parts, high reliability, long service life.

9, easy installation, simple structure, economy is durable.

Typical application:

The application of high temperature and high pressure

cryogenic application in low temperature

Special material using

One-piece application

By static pressure measurement principle:

When the liquid level transmitter into the liquid to be tested in a certain depth, the sensor to meet the pressure on liquid surface formula is: g.

H + Po

Type:

P: the pressure on the transmitter into liquid level

Rho: the measured liquid density

G: the local acceleration of gravity

Po: atmospheric pressure on the surface of liquid

H: transmitter into the depth of the liquid

At the same time, through the gas leading stainless steel will be introduced to the liquid pressure sensor of positive pressure cavity, and atmospheric pressure on the surface of the liquid Po and sensors connected to the negative pressure cavity, to offset the Po on the of the sensor, the sensor measured pressure is: rho.

We, obviously, through the acquisition of pressure P, can get the depth of the liquid level.

Technical specifications:

Accuracy of measurement, plus or minus 10 mm

Measuring range: 0.3 ~ 6 meters (standard), up to 15 meters

Temperature range: 0 ~ 400 ℃

Pressure range: vacuum ~ 16 mpa;

Density range: liquid level density is 0.3 S.

G, interface density difference of 0.05 s.g.

LSS cavity material: 304/304, 316/316 LSS, etc

Float material: 316/316 LSS, titanium, titanium alloy, etc

The process connection: flange/spool/thread

Display type: vacuum glass tube packaging, magnetic shows

Indicator scale: stainless steel ruler, etching liquid level height, a variety of optional engineering units

Protection grade: IP68 download
