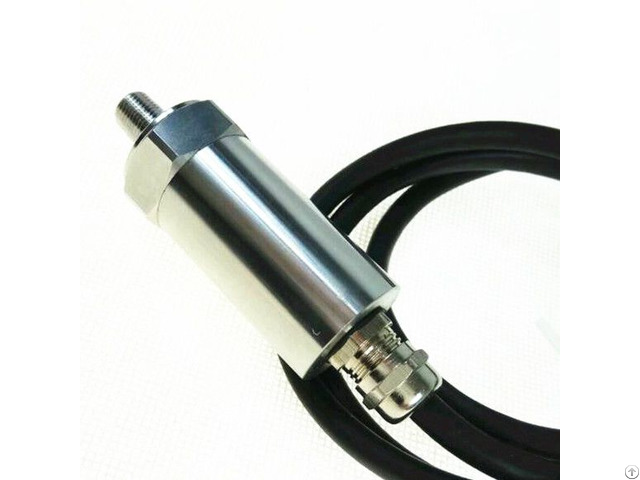

Sapphire Sensor High Pressure Transmitter Price - China
price: contact company for price
Sapphire sensor high pressure pressure transmitter price Description:
Adopt strain resistance principle, use silicon-sapphire as a semiconductor sensitive element, with unparalleled features.
Sapphire series is made of single crystal insulator elements, will not appear lag, fatigue and creep; sapphire type is stronger than diffuse silicon type, with better hardness and no deformation; sapphire with very good flexibility and insulation characteristics (within 1000 OC), and not sensitive to temperature changes.
Features:
High accuracy and stability
Can apply for temperature of -40℃~100℃
High corrosion resistance
A variety optional of pressure interface
Large pressure range to for optio Parameters: Linear+Hysteresis+Repeata bility: ±0.5%FS
Temperature: -40℃.
85℃
Temperature compensation: -10℃.
80℃
Temperature coefficient: Zero temperature coefficient%FS/℃ Sensitivity%/℃
Pressure>1bar Standard0.005, Max0.01 Max0.02
Pressrue 1bar Standard0.010, Max0.02 Max0.02
Pressrue 0.5bar Standard0.015, Max0.03 Max0.02
Pressrue 0.2bar Standard0.025, Max0.05 Max0.02
Stability:
Pressure>2bar Standard0.1%FS Max0.2%FS
Pressure≤2bar Standard2mbar Max4mbar Signal Output: 4.20mA/ Two wire 0.10V/ three wire
Power supply: 10.30VDC 15.30VDC
Load resistance: (U-10V)/0.02A >5K
Frequency response: 5kHz 1kHz Electrical connection: DIN43650
Absolute volume: <0.1mm³
Witted part: 316L stainless steel(DIN1.4435)
Protection: IP65 Process connection: As request
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co., Ltd
- Phone: 00862988812007
- Address: Room 1203B, Inland Port Mansion, No.9 Gangwu Road, Xi an International Trade & Logistics Park, X, Xi'an , Shaanxi , China
- Email:
Published date: March 24, 2017
- Business Description: Professional manufacturer pressure transmitter, pressure gauges, pressure calibrator and deadweight tester.
And we also develop valves, flow meter, temperature transmitter, level transmitter, densitometer etc.
They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
