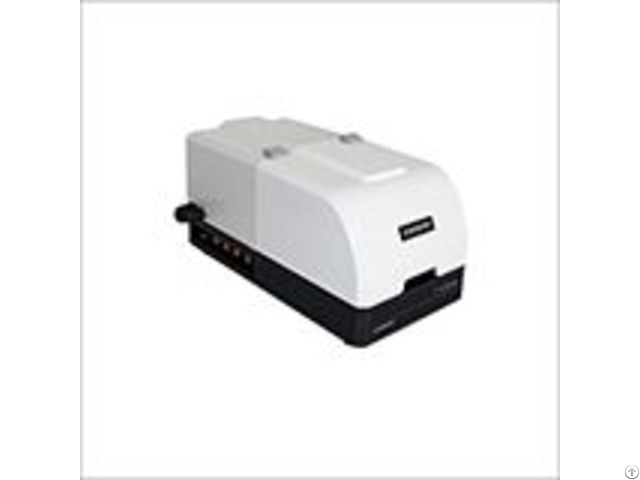

Proton Exchange Membrane Gas Permeability Testing Machine Manufacturer Astm Standard - China

Product Description

Proton Exchange Membrane Gas Permeability Testing Machine Manufacturer ASTM Standard Application Based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate as well as solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, laminated films, high barrier materials, sheeting, metal foils, rubber, tires and permeable membranes.

Proton Exchange Membrane Gas Permeability Testing Machine Manufacturer ASTM Standard Features  Vacuum differential pressure method  Own technology  3 specimens test simultaneously and independently  Computer control  One-button test, test automatically through whole process  High accuracy vacuum sensors embedded in  3 Chambers with independent temperature sensor  Test under various RH conditions with Humidity generator (optional)  Environment temperature and humidity sensor inside  Permeability coefficient, solubility coefficient and diffusion coefficient test  Chambers with water bath temperature control technology  Unit based on embedded system, 24bit Δ-Σ AD  Multiple test modes optional  Data curves display  Traceable reference film calibration  Supports DSM system (DSM, lab data management system) Proton Exchange Membrane Gas Permeability Testing Machine Manufacturer ASTM Standard Technical Indexes Test range: 0.01 - 190, 000 cm3/m2 ·24h·0.1MPa (Standard) Resolution: 0.001cm3/m2 ·24h·0.1MPa Samples: 3, independent Vacuum accuracy: 0.1Pa Temperature range: 5C - 95C Temperature accuracy: ±0.1C Humidity range: 0%RH, 35%RH-90%RH, 100%RH (optional) Humidity accuracy: ±1%RH (optional) Sample thickness: less 5mm Sample size: >= 150mm * 94mm Test area: 48cm2 Test gas: O2, N2, CO2, He, etc(Flammable or toxic gases test available: H2, CH4, H2S, C2H2, C2H4 etc, must be announced in advance) Differential pressure: -0.1MPa-0.1MPa(Standard) 1.0MPa, 4.0MPa(optional) Gas interface: Ф8mm
