Pressure Transmitter Core Components - China
price: contact company for price
MS0010

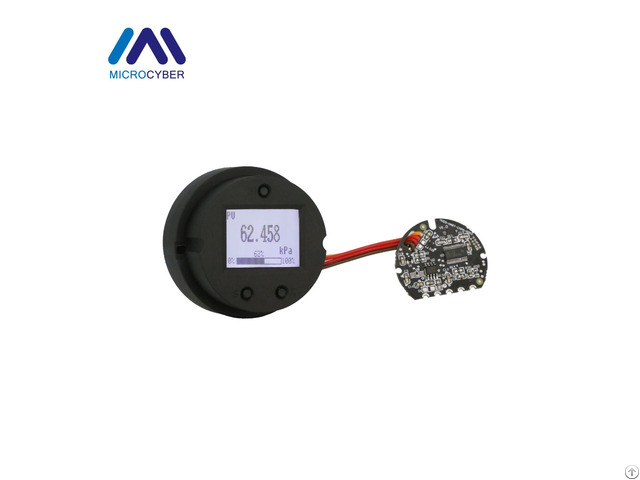

pressure transmitter Core components
suit to smart pressure transmitters
1 - Main Characteristic l 4 ~ 20mA output with digital communication of HART protocol(two-wire) l Communication of interface: UART l Support CPU failure alarm l Write-protect jumper l IEC Ex intrinsic safety certification l EMC test certification l With optical coupler l Support LCD and magnetism stick operation l Support Rosemount 275/375 Controller l Size: Φ65mm(customized according to user’s requirements) 2 - Technical Parameter l Power supply: 11.9 ~ 45V l Accuracy: 0.02% l High alarm current: no less than 20.8mA l Low alarm current: no more than 3.9mA l Power supply of interface board: isolation 3.3V, 3 mA l Operation temperature: - 40°C~ 85 l Damping adjusting: 0 ~ 32s, stepping 0.1s
Company Contact:
- Posted By: Microcyber Corporation
- Phone: 862431217280
- Address: 17-8 Wensu Street, Hunnan New District, Shenyang , Liaoning , China
- Email:
- Website: https://www.microcybers.com/
Published date: November 1, 2019
- Business Description: Based on fieldbus technology, we are professionally engaged in R&D, manufacturing, sales and engineering service of communication stack, communication controller, customized communication board (FF H1, PROFIBUS PA and HART), control configuration software, control system, pressure transmitter with capacitance sensor or piezoresistance silicon sensor (FF H1, PROFIBUS PA and HART), temperature transmitter (FF H1, PROFIBUS PA and HART) and F/I & I/F converter, etc.
