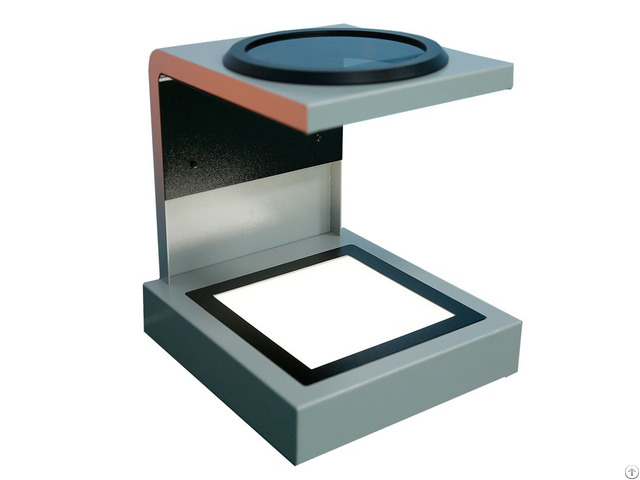

Preform Strain Viewer Detecting Defects In Plastic Bottle And Polymers - China
price: 1.00 Dollar US$
Features 1 - Defects invisible to the naked eyes such as crystallization or other common defects become visible ;
2 - When the plastic preform is placed on the Polarizer at a 45° angle, the colored birefringent stripes at the edge of the preform can be observed;
3 - When the plastic preform is placed on the polarizer at a 0°or 90° angle, black birefringence stripes in the central part of the preform will be displayed;
4 - In addition to white light, Sodium light is also used to test colored preforms or finished bottles; Specifications : Viewing field: 200* 200 mm
Overall size: 300*335*330 mm
Main voltage: 220 V AC
Measuring space height : 234.5 mm
Light source: LED ( White and Sodium light)
Gross Weight : 10KG
Packed in 1 carton : 45*45*32cm
Company Contact:
- Posted By: Suzhou PTC Optical Instrument
- Phone: +8618913228862
- Address: NO. 189 , Zhangji Road , Eocnomic Development Zone, Kunshan , China (Mainland), China
- Email:
- Website: https://www.ptc-stress.com/
Published date: January 5, 2021
- Business Description: PTC China is a national high-tech enterprise specializing in the design and manufacture of glass Surface Stress Meter , Polariscope , automatic Optical Inspection Equipment ( AOI ） and Vision Inspection System .
