    • Precision 2 Way Power Splitter With Sma Connector - China

    price: 14.00 Dollar US$

    Precision 2 Way Power Splitter With Sma Connector

    Products Photos Catalog Precision Power Photos Catalog

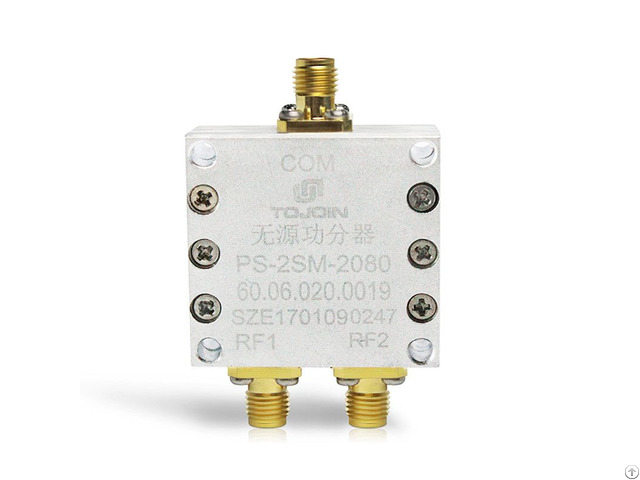

    0.8-8GHz precision 2 way power splitter Power Divider with SMA connector

    Technical Parameter:

    Parameter Min.

    Typ.

    Max.

    Frequency Range(GHz) 2 8

    Insertion Loss(dB)

    (With distribution ratio ) 3.7 4

    Isolation(dB) 18 20 VSWR 1.35

    Amplitude Balance(dB) 0.3

    Phase Balance(°) 5

    Impedance(Ω) 50 Connectors SMA Power Capacity(W) 10 Operating Temperature(°C) -30 normal temperature +70

    Physical Dimension(mm, +/-0.1) — 49.6×33.5×12.8 —

    Weight(g) 30 35 40


    Company Contact:


    • Phone: 13823281261

    • Address: Liutang Business Building A, No.21,Qianjin 2nd Road, Ban´an district, Shenzhen city, Guangdong Provi, shenzhen , guangzhou , China

    • Email: Email


    Published date: December 8, 2021

    • Business Description: Our main products include: GNSS Multi-System Satellite Signal Simulator, GNSS Multi-System Satellite Signal Transponder, Ultra-Wideband Antenna Array Compact Range TEM Cell, EMC Shielding Box, EMC Shielding Room, Millimeter Wave Connector and Cable Assembly.

      We always act in accordance with the management idea of "Innovation drives Development, Quality casts Soul".

      We innovate continuously according to customers' requirements,while at the same time exceed customers' expectations.

      We have standardized and diversified products to save customers' testing costs.

      As well as this we have a variety of complementary products and automation system equipment that helps to solve the problem of complex product testing and model selection, thus saving the purchasing time of customers.

      The company has regarded quality as life for more than a decade, with the Certification of IS09001: 2015 International Quality Management System by CEPREI China and CE Certification.

      We possess a number of world advanced testing equipment E5071C, ROSH testing equipment, High-Low temperature test chamber, salt spray test and vibration test.
