Portable Track Gauge Calibrator Easy To Carry Accurate Data - China
price: 350.00 Dollar US$

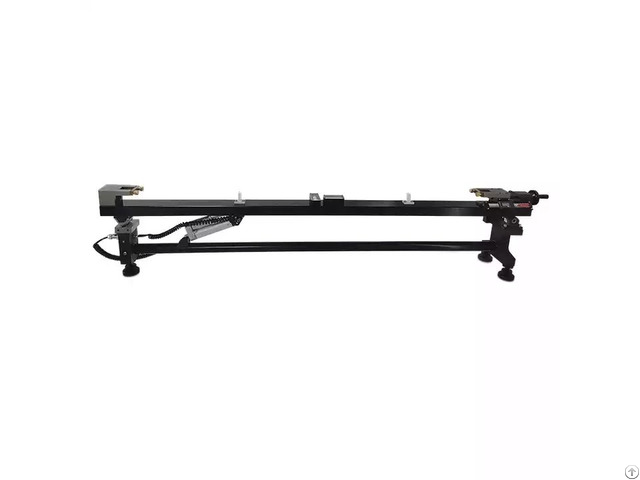

Track Gauge Calibration Device
The calibrator is a railway measuring instrument that used to calibrate the 1435mm track gauge, the guard rail check gauge, the guard rail face gauge and the super-elevation.
Model: LJ-JDQ-I
Type: Track Gauge Calibrator
Material: Aluminium alloy
Dimensions (L x W x H) (mm): 1800*100*500mm
Track gauge: 1410-1470mm Accuracy: Zero position ±0.04mm Nonzero position ±0.06mm
Super elevation: Super elevation special gauge part 30mm, 60mm, 120mm, 180mm Use according to the measured value Accuracy: ±0.06
Company Contact:
- Posted By: Wuhan linkage track equipment co.,ltd
- Phone: 07103229062
- Address: Room 1007, Block B, Building 1, Huagong Science Park Modern Service Industry Base, University Park R, 武汉市 （Wuhan City）, 中国 , China
- Email:
- Website: https://www.linkrailtech.com
Published date: June 18, 2024
- Business Description: Wuhan Linkage Track Equipment Co., Ltd established in 2013, We are the leading manufacturer for railway equipment which are being used all over the world.
We are a new and high-tech enterprises which integrates R&D, production and sales service, owning advanced production equipment, perfect inspection instrument and R&D center with strong technical force.
Specialized in production of railway measuring equipment and track maintenance machine, such as rail tamping machine, rail drilling machine, rail cutting machine and other railway related products.
