Portable Lightweight Abrasive Rail Saw Disc Cutter Track Gauge - China

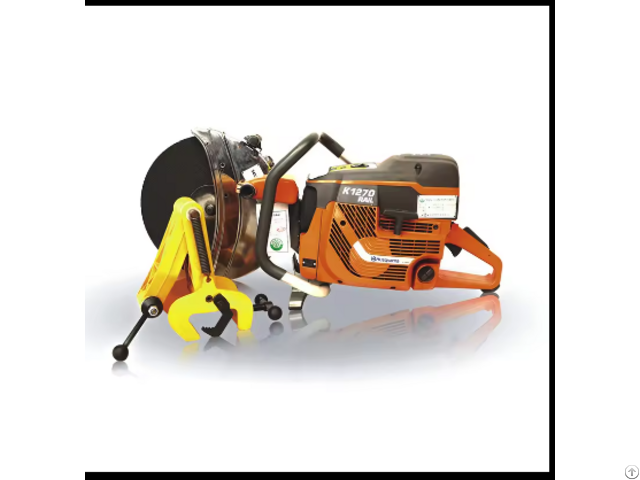

NQG-5.8 Abrasive Rail Saw

NQG-5.8 lightweight abrasive rail saw is a railway maintenance tool.

It not only cuts rails with high speed and high quality, but also has low wear cutting discs.

It is locked by rail clamps.

It has a simple structure, light weight, safety and easy movement.

It is suitable for maintenance, repair of broken rails of seamless tracks, and cutting of steel rails in long rail welding factories.

Specification

Model

NQG-5.8

Type

Rail Cutting Machine

Material

Stainless Steel

Dimensions (L x W x H) (mm)

850*480*500mm

Engine

Single-cylinder, air-cooling two-stroke petrol engine (imported from Sweden K1270R)5.8 kW Cutting disc form

Double- layer reinforced wire mesh

Linear speed of cutting disc

100 m/s

Rated RPM

≥4500 r/min

Specification of cutting disc

φ355xφ25.4 x3.8mm

Cutting accuracy

Vertical deviation of notch and rail≤0.30mm Deviation of bidirectional cutting interfaces≤0 - 35mm

Cutting time

≤110s( cut off 60kg/m rail)

Fuel tank capacity

1.25 L

Weight

22kg
