Portable Digital Rolling Light Weight Bluetooth Connection High Working Efficiency - China
price: 6000.00 Dollar US$

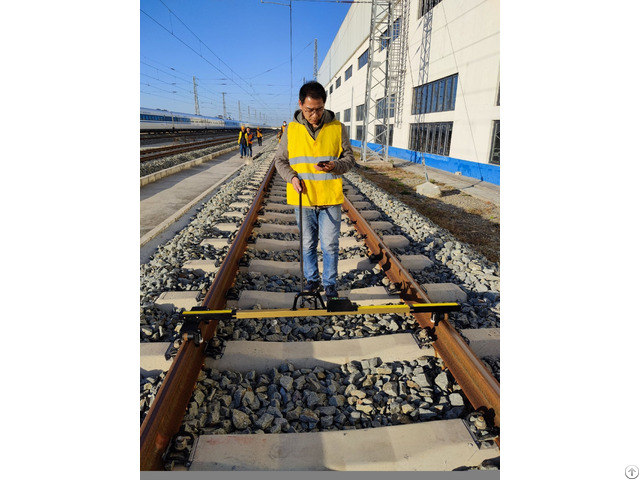

Portable Rolling Track Gauge is mainly used for railway track gauge and super-elevation (cant) .
It can be used for track inspection and fine adjustment of rail gauge.
This product has the advantages of fast measuring speed, stable pushing rod, easy to carry, and night-time and tunnel work, legible even in direct sunlight are supported.
It is an ideal measuring tool for track fine-tuning, track construction, inspection and track laying.
Model (1435mm)：GJC-JJG0
Track gauge：1410-1470mm
Superelevation measuring range：-185~+185mm
Display mode：OLED display and hand-held terminal display
Supply Voltage：DC3.4V～5.2V (rechargeable battery)
Superelevation division value：0.05mm
Working temperature：-30℃～+5 5℃
Insulation performance：＞1MΩ
Track gauge division value：0.01mm
Track gauge max indication error：≤±0.25mm
Superelevation max indication error：≤±0.3mm
Length：＜1700mm
Company Contact:
- Posted By: Wuhan linkage track equipment co.,ltd
- Phone: 07103229062
- Address: Room 1007, Block B, Building 1, Huagong Science Park Modern Service Industry Base, University Park R, 武汉市 （Wuhan City）, 中国 , China
- Email:
- Website: https://www.linkrailtech.com/
Published date: June 17, 2024
- Business Description: Wuhan Linkage Track Equipment Co., Ltd established in 2013, We are the leading manufacturer for railway equipment which are being used all over the world.
We are a new and high-tech enterprises which integrates R&D, production and sales service, owning advanced production equipment, perfect inspection instrument and R&D center with strong technical force.
Specialized in production of railway measuring equipment and track maintenance machine, such as rail tamping machine, rail drilling machine, rail cutting machine and other railway related products.
