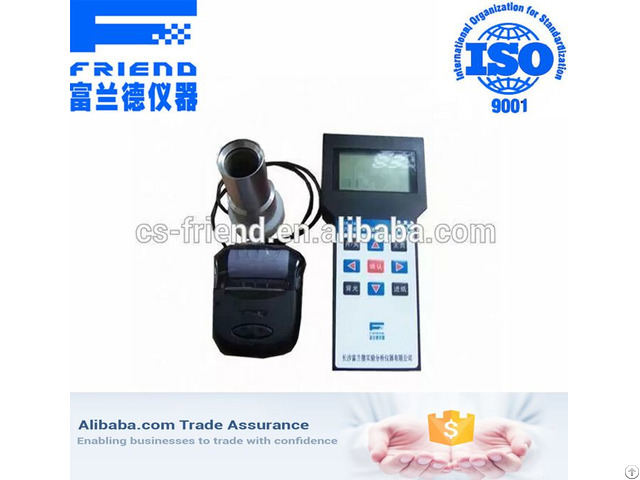

Portable Cetane And Octane Analyzer - China

Scope

Octane meter meets the requirements of: ASTM D 2699-86, ASTM D 2700-86.

Cetane Number meter meets the requirements of: ASTM D 4737-03, ASTM D 613, EN ISO 5165

Measuring principle: By analyzing the characteristics of the insulating charge permeability octane gasoline and diesel fuel cetane number and electromagnetic induction measured out.

By measuring the dielectric properties of the sample, with the presence of known parameter memory compared so as to determine the results

Features

1, innovative silicon quartz crystal polymer material ring-type detection probe, detection resolution more sensitive and can detect tiny changes in dielectric parameters

2, the annular intensive multi-probe testing, real-time detection of the sample parameters, controlled by strict anti-spreader, the unique design of multi-point dynamic coefficient of self-calibration technology and precision mechanical structure, the result is more accurate

3, innovation introduced the US imports XECOM data processing chip, powerful, fast and accurate processing of data can be stored experimental results

4, display real-time detection of gasoline octane number RON, MON and antiknock index (AKI), as well as pour point diesel fuel cetane index

5, SA intelligent battery management system, long standby time on a single charge can be used for 1000 hours to facilitate customers to carry, Outdoor Detection

Technical Parameters

1, test items: gasoline octane number, cetane number and pour point

2, detection range: octane: 40-120 (accuracy 0.5), cetane number: 20-100 (accuracy 1)

3, the detection time: <3sec, detection current: 30mA,

4, for the environment: temperature -10 ℃ ~ + 40 ℃, relative humidity 30% ~ 80% R.H.

Company Contact:

• Posted By: Changsha Friend Experimental Analysis Instrument Co., Ltd

• Phone: +86073183889629

• Address: 3F/8, No. 627 Lugu Road , LongSea Group, Changsha High-tech Zone, Changsha , Hunan , China

• Email:

• Website: http://www.cs-friends.com

• Business Description: Oil testing equipment, gas chromatograph, other testing equipment, asphalt testing equipment, fuel oil and transformer oil testing equipment, pH meter, pesticide residue test equipment
