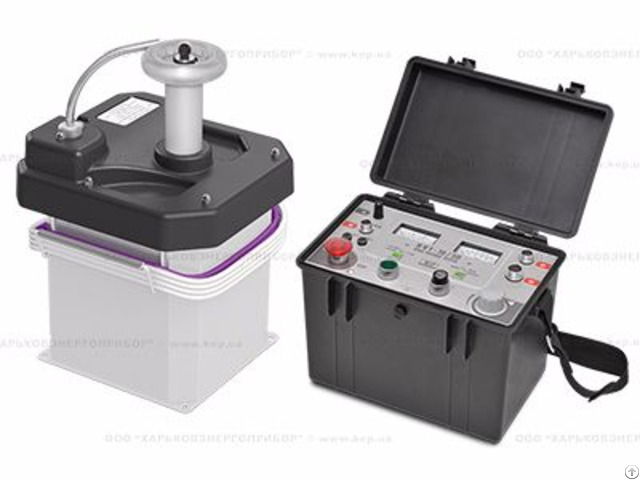

Portable Ac Dc Hipot Tester Hvt 70 50 - Ukraine
price: contact company for price
High Voltage Tester HVT-70/50 perform DC high-voltage testing of power cables (IEC 60502-2) up to 70 kV, power cables accessories (IEC 61442) as well as AC high-voltage testing, up to 50 kV at 50 Hz, of switchgear, reclosers, dielectric insulators, highvoltage dischargers (arresters), busbars and other dielectric materials with relatively low electric capacitance.
Technical SpecificationsParameterVa lue
Supply voltage single-phase alternating current, V220 ± 22
Frequency, Hz50 ± 2
Maximum power consumption, kVA, max3
Highest output voltage, kV:
- AC50
- DC70
Highest output current, mA:
- on AC voltage 44
- on DC voltage 14
Reduced voltage error, %, max:
- AC voltage from 2 kV to 50 kV ± 3
- DC voltage from 2 kV to 70 kV± 3
Reduced current error, %, max:
- AC from 1, 0 mA to 45, 0 mA ± 3
- DC from 0, 5 mA to 14, 5 mA ± 3
Maximum current threshold on the high-voltage side, mA, max:
- AC voltage 45
- DC voltage 14, 5
Control Unit dimensions, mm, max266 × 240 × 354
Control Unit Weight, kg, max13
High Voltage Unit dimensions, mm, max 360×310×500
High Voltage Unit weight, kg, max33
lifespan, years, avg10
Company Contact:
- Posted By: KharkovEnergoPribor Ltd.
- Phone: +380503237124
- Address: Kharkov, 3-rd Internacionala Str. 9, Kharkiv , Kharkiv oblast, Ukraine
- Email:
- Website: http://www.kep.ua/en/
Published date: August 22, 2016
- Business Description: KharkovEnergoPribor Ltd. - is the leading Ukrainian company specialising in designing and manufacturing high voltage field-testing equipment, insulating liquids testing and cable and calibration test vans for national power grids, oil and gas, automotive, railway and aircraft industries.
