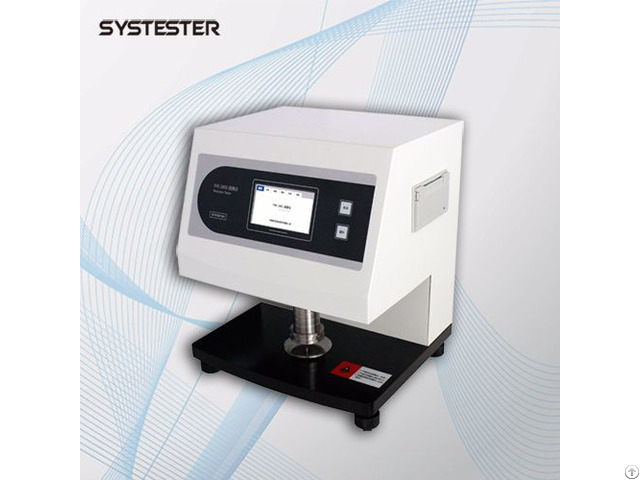

Plastic Films Metal Sheets Diaphragms Thickness Tester Testing Machine - China

Plastic films/metal sheets/diaphragms thickness tester, testing machine Application:

Thickness tester is applicable in accurate thickness test for plastic films, silicon chip, paper, paper board, aluminum foils, laminated films etc.

packaging materials.

And thickness tester conforms to standards of ASTM D645, ASTM D374, ASTM D1777, TAPPI T411, ISO 4593, ISO 534, ISO 3034, DIN 53105, DIN 53353, JIS K6250, JIS K6328, JIS K6783, JIS Z1702, BS 3983, BS 4817 etc.

THI-1801 main feature:

1 - Professional thickness tester and testing resolution reaches 0.1 micron

2 - Touch screen operation and patent technology

3 - Single, loop dual test modes

4 - Two modes of Auto and Manual are available

5 - Mechanical contacting test and Suitable for all kinds of materials

6 - Standard and non-standard test can be available.

THICKNESS TESTER TECHNICAL INDEXES:

TESTING ACCURACY 2 MM (STANDARD) 6MM, 12MM (OPTIONAL)

RESOLUTION 0.1MICRON

TESTING SPEED 15TIMS/MIN (STANDARD )

TESTING PRESSURE 17.5+_1KPA (SHEETS);50+_1KPA(PAPER)

CONTACT AREA 50MM2(SHEETS) 200MM2 (PAPER)

POWER SUPPLY AC 220V 50HZ

DIMENSION 305 MM (L) * 270MM (B)* 310MM(H)

NET WEIGHT 35KG
