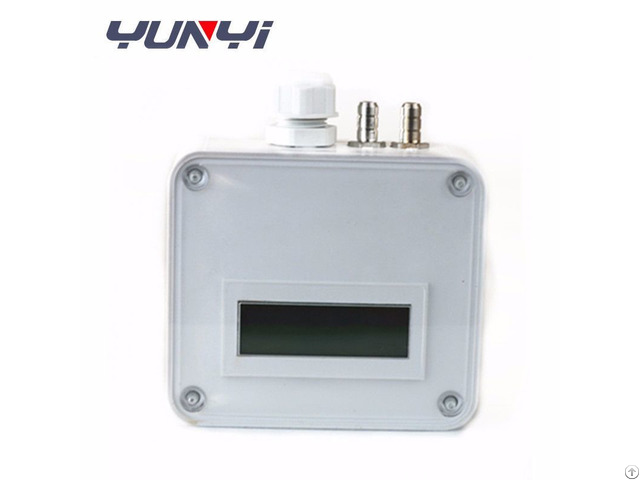

Oem Digital Air Differential Pressure Transmitter Sensor Led - China
price: 90.00 Dollar US$
Description oem digital air Differential Pressure Transmitter differential pressure transmitters are engineered for building automation in the HVAC/R industry, pressure and flow monitoring, and low differential pressure test in industry application.
Detailed Images air Differential Pressure Transmitter sensor led oem digital air Differential Pressure Transmitter sensor led Specification air Differential Pressure Transmitter sensor led Range
FM108 0~+/-100, 250, 500, 750, 1000 Pa
FM112 0~+/-1000, 2500, 5000, 7500, 10000 Pa
Precision
±0.5% FS
Unit
FM108/ 112
Pa, mmH2O, mbar, inWG, mmHG, daPa, KPa, hPa
Allowable pressure
FM108
15, 000Pa
FM112
150, 000Pa
Outlet signal
1 group 4 ~ 20 mA or 0 ~ 10 Vdc ( 2 wire )
Power
16 ~ 30 Vdc/Vac ( 2 wire )
24Vdc adaptor power supply
220Vac
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co,.ltd
- Phone: 17391772083
- Address: Inland Port Mansion, No.9 Gangwu Road, Xi'an International Trade & Logistics Park, Xi'an City, Shaanxi Province, China
- Email:
- Website: https://yunyiyibiao.en.alibaba.com/
Published date: June 5, 2018 - Modified date: June 5, 2018
- Business Description: Xi'an Yunyi Instrument Co., Ltd.,
specializing in Piston dead weight tester, pressure calibrator, hand test pump, Pressure gauges / transmitters, level meter , flow meter, temperature and ph instruments with more than 10 years.
