Ns820 Color Spectrophotometer D 8 With Opacity Whiteness Yellowness Function And 4mm Small - China

3nh color spectrophotometer d/8 with opacity whiteness yellowness function and 4mm small aperture NS820

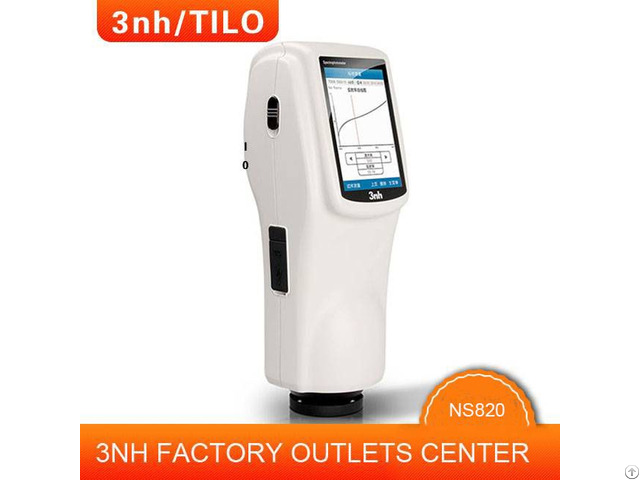

NS820 spectrophotometer features a 3.5" ultra-large display with touch-screen function which makes the operation quite simple, the interface quite friendly.

Elegant appearance combines perfectly with the ergonomic design, which makes it a model of portable handheld spectrophotometer.

NS820 spectrophotometer adopts a 58mm ultra-large integrating sphere which can homogenize light better, and the D/8° optical geometry structure conforming to the standards CIE, ISO, ASTM, DIN, all of which make its accuracy incomparable.

Repetitive error is less than 0.04ΔE*ab, inter-instrument error is less than 0.2ΔE*ab, which make its stability and reliability of measurement very superior.

NS820 spectrophotometer is configured with 2 types of observer angles, 2° and 10°, multiple light source types, multiple color space systems, multiple chromaticity indexes conforming to different standards, all of which make NS820 can excellently fulfill all kinds of requirements for color measurements in different industries.

NS820 spectrophotometer also goes with a powerful PC software SQC8 which includes more extended functions that can enormously facilitate your work.

With the configuration of universal test component and powder test box, measurements of liquid, paste, powder and particle can be implemented without hesitation.

Detailed Parameters

NS820 Precise Spectrophotometer

Model Number NS820

Illuminating/Viewing Geometry D/8° (Diffused illumination, 8 degree viewing angle), Conform to the Standard CIE No.

15, GB/T 3978.

Measuring Aperture Φ4mm

Integrating Sphere Diameter Φ58mm

Repetitive Error Spectral Reflectance: Standard deviation within 0.1%(400~700nm: within 0.2%)

Colorimetric Value: Standard deviation ΔE*ab≤0.04 (Measurement Conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration performed.

)

Inter-Instruments Error ΔE*ab≤0.2 (Average value of the measurement results of the 12 tint plates of BCRA series )

Wavelength Range 400~700nm

Wavelength Pitch 10nm

Reflectance Range 0~200%

Color Space CIE LAB, XYZ, Yxy, LCh, CIE LUV, LAB & WI & YI

Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2: 1), ΔE*cmc(1: 1), ΔE*cmc(l: c), CIE2000ΔE*00, ΔE(h)

Display Data Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, Color Index Setting(ΔE*94, ΔE*cmc, ΔE2000), Tolerance Prompt, Reverse Prompt

Other Chromaticity Data WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), TI(ASTM E313, CIE/ISO), Metamerism Index (Mt), Color Strength, Color Stain, Color Fastness

Observer Angle 2°/10°

Light Sources Type D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30)

Light Source Device Combined LED Light

Light Source Life 5 years, More than 1.6 million measurements

Sensor Silicon Photoelectric Diode Array

Measuring Time 1.5s

Data Storage 1000 Standards, 15000 Samples

Data Port USB&RS232

Display Size TFT 3.5"

Touch-Screen Yes

Operating Temperature 0~40ºC(32~104ºF)

Storage Temperature -20~50ºC(-4~122ºF)

PC Software SQC8

Weight 600g

Dimension 90*77*230mm

Battery Large Capacity Li-ion Battery

Standard Accessory Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), Data Cable, White and Black Calibration Cavity, Protective Cover and Wrist Strap.

Optional Accessory Universal Test Components, Micro Printer, Powder Test Box

Certificates CE & RoHS & TUV & FCC & ISO9001 Shenzhen 3nh Technology Co., Ltd
