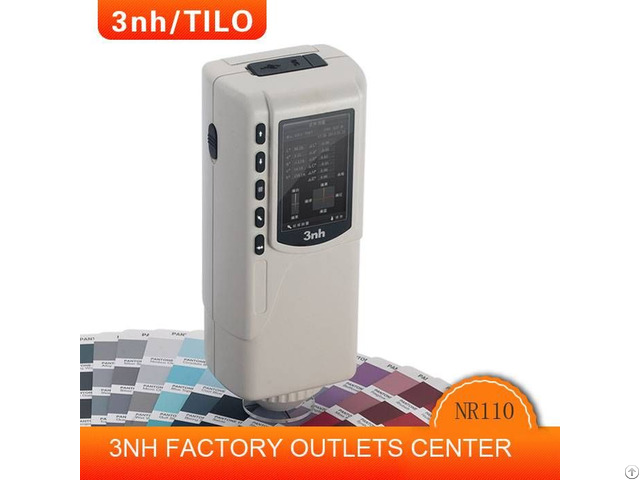

Nr110 Portable And Digital Precision Colorimeter - China

NR110 Best Price Digital Colorimeter Application:

High quality portable colorimeters are widely used in R&D, quality control and production management departments in plastic, electronic, paint, ink, print, paper, food, medical, cosmetic industries and scientific research, school and laboratory fields.

3nh colorimeter has the capability to measure color differences accurately and quickly.

It is equipped with quality management software which can connect with computer and realize more functions.

New Functions:

Double Locating: Illuminating locating and cross locating

Double Measurement End Face: Large area measurement and small area measurement

New Integrating Sphere Design: More stable measurement

Equipped with Rechargeable High-Capacity Li-ion Battery Product Advantages: a.

Built-in white plate parameters.

No need to calibrate each time which realize rapid measurement.

b.

Double Locating: Illuminating locating and precise cross locating.

c.

Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.

d.

New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path.

Possessing the highest measurement stability and precision.

e.

4mm Measuring Aperture.

The repeatability dE is 0.05~0.1 - (Different model with different precision)

f.

Equipped with rechargeable high-capacity Li-ion battery.

No need to purchase battery repeatedly.

g.

Configure CQCS3 software.

Connect PC computer to realize more functions.

h.

Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.

i.

Hand-head structure: small and convenient; make the measurement easier.

j.

Exquisite appearance: adopts traditional and fashionable aesthetic designs.

k.

Spending huge sums on high-end mold.

Product consistency approaches 100%.

l.

High cost performance: large output, good quality, cheap products.

Technical Specifications

Illuminating/Viewing Geometry 8/d Measuring Aperture Φ4mm Detector Silicon photoelectric diode Locating Illuminating Locating/Cross Locating

Measurement End Face Large stable end-face and small concave-convex end-face

Color Space CIEL*a*b*C*h* CIEL*a*b* CIEXYZ Color Difference Formula E*ab L*a*b* E*C*h* Light Source D65 Light Source Device LED blue light excitation Errors Between Each Equipment ≤0.80ΔE*ab Storage 100pcs standards 10000pcs samples Repeatability Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate Language English/Chinese

Weight 450g Dimension 205×67×80 mm Power source Rechargeable lithium-ion battery 3.7V@3200mAh Lamp Life 3 years, more than 1.6 million measurements Charging Time 8 hours--100% electricity PC Software CQCS3 Software

Printer (optional) Miniature thermal printer
