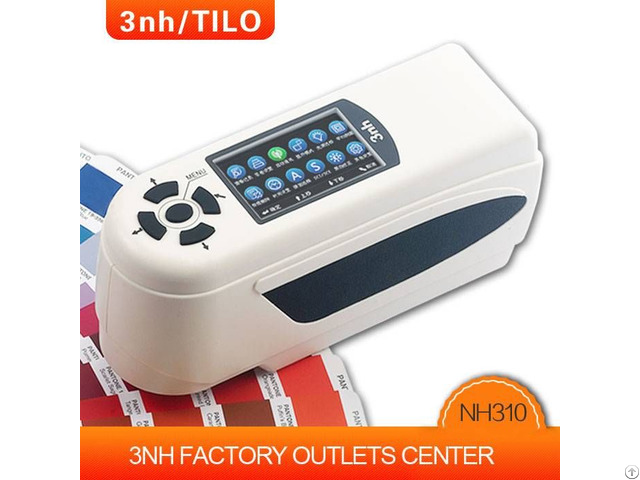

Nh310 High Precision Textile Colorimeter Color Analyzer Panton - China

Product Comparison

High-End Brand of Domestic Colorimeter NH310 is a mainstream brand colorimeter introduced by 3nh which has synthesized the advantages of ten more traditional imported colorimetersand has experienced ten thousands tests and applied many innovative technologies.

Accurate, Stable, Exquisite and Affordable! The Preferred Solution for Color Quality Control Management NH310 high-quality portable colorimeter has adopted multi-channel color sensors of international brands, more stable IC platform as well as efficient and accurate algorithms to provide users with accurate and fast color management and application.

NH310 is also designed with ergonomics and humanized operation and it has applied for a number of patents.

NH310 is a multifunctional colorimeter with high quality and competitive price.

3nh insists on independent research whose technology innovation is unique in color management field.

NH310 is the most convenient colorimeter for users.

NH310 High-Quality Portable Colorimeter 1 - Leading Humanity Design and Convenient Operation

Auto White and Black Calibration at Startup

Structure Design in line with Ergonomics

Easy-to-use Operation Interface 2 - Stable Measurement Performance

The average fluctuation of △E is less than 0.06, actually more in 0.03~0.06.

Portable structure design which is more conductive to keeping the instrument stable when using.

3 - Flexible and Accurate Locating

Camera locating can solve the problem of locating a small area.

The minimum width of locating is 4mm.

Illumination locating is a fast, simple and convenient locating function which is the original function by 3nh.

4 - More Measurement Modes

Three measuring apertures for more circumstances.

Five color spaces for more color schemes selection.

Three light sources for more circumstances.

5 - PC Software—Realize More Function Expansion

3nh has the intellectual property of PC software.

The corresponding software serial number and password protection are configured in 3nh colorimeter.

Be able to?perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.

6 - Advanced Power Management Design

3nh is the first enterprise using high capacity Li-ion battery in colorimeter.

3nh Li-ion battery can be repeatedly charged which will save cost.

Meanwhile, it can measure more than 3000 times on one charge to ensure the stability of long time measurement.

National Patent and Innovative Technology No.

1 Camera locating and illumination location (NH310 has new functions of double locating.

) No.

2 Built-in white plate; Automatic calibration at startup (for NH310) No.

3 Extended aperture (optional), available for measuring concave surface NH Series Colorimeter Specifications NH300 NH310

Illuminating/Viewing Geometry 8/d 8/d

Measuring Aperture Φ8mm Φ8mm/Φ4mm

Detector Silicon photoelectric diode Silicon photoelectric diode

Color Space CIEL*a*b*C*h* CIEL*a*b* CIEL*a*b*C*h* CIEL*a*b* CIEXYZ CIERGB CIEL*u*v* CIEL*C*h Yellowness & Whiteness Color Fastness

Color Difference Formula △E*ab △L*a*b △E*C*h △E*ab △L*a*b* △E*C*h* △ECIE94 △Ehunter

Light Source D65 D65 D50 A

Light Source Device LED blue light excitation LED blue light excitation

Errors Between Each Equipment ≤0.40ΔE*ab ≤0.40ΔE*ab

Storage 100pcs standards 20000pcs samples 100pcs standards 20000pcs samples

Repeatability Standard deviation within ΔE*ab 0.07 Average of 30 measurements of standard white plate Standard deviation within ΔE*ab 0.06

Average of 30 measurements of standard white plate

Weight 500g 500g

Dimension 205×70×100 mm 205×70×100 mm

Power source Rechargeable lithium-ion battery 3.7V@3200mAh Rechargeable lithium-ion battery 3.7V@3200mAh

Lamp Life 5 years, more than 1.6 million measurements 5 years, more than 1.6 million measurements

Charging Time 2 hours (first time 8 hours--100% electricity) 2 hours (first time 8 hours--100% electricity)

Measuring Times Before Recharging more than 3000 times more than 3000 times

Operating Temperature/Humidity Range -10~40℃, relative humidity 0~85% with no condensation -10~40℃, relative humidity 0~85% with no condensation

Data Interface USB USB

Extended Aperture (optional) - Φ8mm extended aperture, available for measuring concave surface

Printer (optional) Miniature thermal printer Miniature thermal printer Contact details
