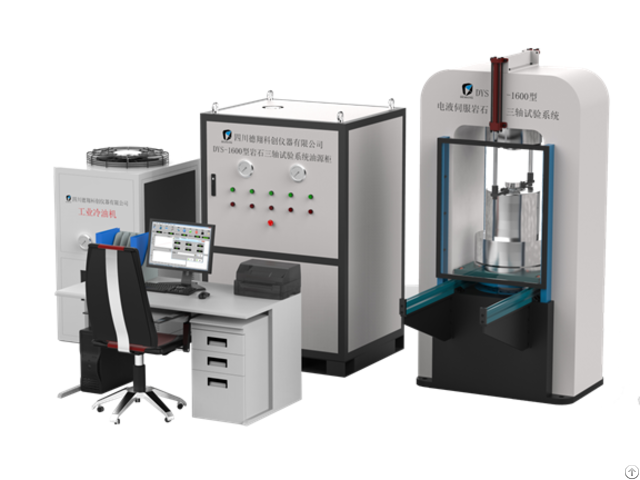

Multi Physics Coupling Rock Mechanics Testing Machine - China

Combined with the inland products, importing servo valve and motor driving technology, measure-control technology, microcomputer control and processing technology development to proceed water/gas/solid multiphase medium seepage testing under temperature and multi-physics coupling of coal petrography.

Model DMPR -1000 DMPR -2000 DMPR -3000 DMPR -5000 Testing Force Max axial force 1000kN 2000kN 3000kN 5000kN Accuracy ±0.5% Force grade shift automatically Force accuracy Indicating value: ±0.5% mainframe Max piston displacement 100mm

Axial Displacement accuracy Indicating value: ±0.5% Control mode Force and displacement

Confining pressure Range 0-30MPa Accuracy ±0.5%

Gas flux(exit) 0-5L/min measurement accuracy ±1% Pressure range 0-20MPa gas pressure acccracy ±0.5%

Electromagnetic rate microwave rate High-precision adjustment of microwave’s rate, intensity and action time without electromagnetic radiation leakage.

specimens TEMP Range -200℃, fluctuation：±1℃ Size Φ100×200mm

Vacuum degree 60×10-2 Pa Automatically collecting of normal force, deformation, gas pressure, TEMP and flux etc.

Autonomous channel of water route and gas route

Seepage control constant voltage Adsorption-percolation system Max pressure 20MPa

TEMP control system High-precision of steady TEMP control
