Modbus To Profibus Dp Converting Oem Module With Ttl Interface Supported - China
price: contact company for price
Product Overview
Modbus-DP built-in module realizes the connection from Modbus RTU device to PROFIBUS DP network .
It realizes the conversion function from MODBUS Protocol to PROFIBUS DP Protocol.
Only by simply operating Modbus configuration tool, the users can realize connection from Modbus RTU device to PROFIBUS DP network.

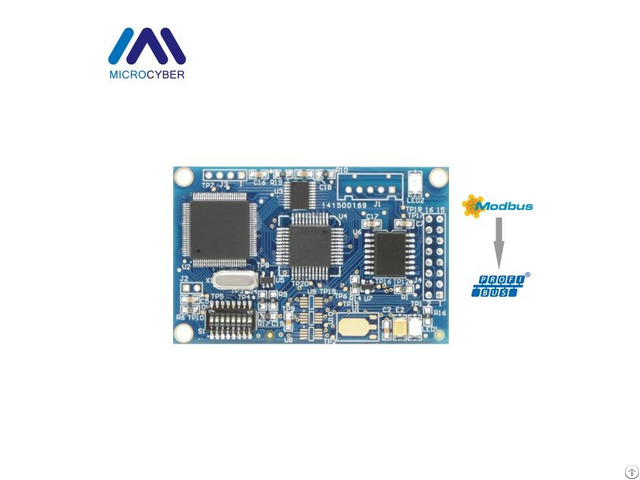

M0306 module works with DIP16 2.54mm standard interface, 3.3 V power supply, Modbus communication indicating light to quick diagnosis the device status.
It uses simple convenience Combining with the features of high reliability and high flexibility, M0306 module is an ideal choice for user to develop OEM devices with PROFIBUS DP protocol.
Features
Support 1 Modbus RTU slave device
Comply with standard PROFIBUS-DP/V0
Support Max 244 bytes input data, 244 bytes output data, 360 bytes input output data, 200 bytes user data
Set flexibly Modbus RTU and PROFIBUS DP protocols with GSD file
Transparently transmitting data between Modbus RTU and PROFIBUS DP
Hardware setting of PROFIBUS DP Device Address
Module is suitable for transducer, motor protective device, transmitter, smart field measuring equipment and device with Modbus protocol.
Company Contact:
- Posted By: Microcyber Corporation
- Phone: 862431217280
- Address: 17-8 Wensu Street, Hunnan New District, Shenyang , Liaoning , China
- Email:
- Website: https://www.microcybers.com/
Published date: November 1, 2019
- Business Description: Based on fieldbus technology, we are professionally engaged in R&D, manufacturing, sales and engineering service of communication stack, communication controller, customized communication board (FF H1, PROFIBUS PA and HART), control configuration software, control system, pressure transmitter with capacitance sensor or piezoresistance silicon sensor (FF H1, PROFIBUS PA and HART), temperature transmitter (FF H1, PROFIBUS PA and HART) and F/I & I/F converter, etc.
