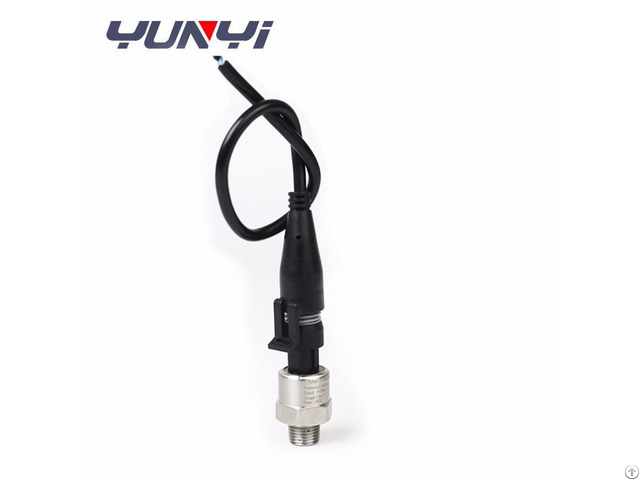

Mini Pressure Transducer For Oil Water - China
price: 19.00 Dollar US$1 - Range: 0 ~ -1, -10, -50, -100KPa, -100KPa, -50KPa ~ 0Kpa 2 - Overall accuracy: 0.1% FS, 0.2% FS, 0.5% FS 3 - Output signal: 4 ~ 20mA (two-wire), 0 ~ 5V, 1 ~ 5V, 0 ~ 10V (three-wire) 4 - Supply voltage: 24DCV (9 ~ 36DCV) 5 - Medium temperature: -20 ~ 85 ℃ 6 - Ambient temperature: room temperature (-20 ~ 85 ℃) 7 - Load Resistance: Current Output: maximum 800Ω; voltage output: more than 50KΩ 8 - Insulation resistance: more than 2000MΩ / 50VDC 9 - Response time: <1ms 10 - Sealing class: IP65 11 - Long-term stability: 0.1% FS / year 12 - Vibration effects: in the mechanical vibration frequency 20Hz ~ 1000Hz, the output changes less than 0.1% FS 13 - Electrical connection: Hirschmann connector (other optional) 14 - Threaded connection: M20 × 1.5, other threads can be designed based on customer requirement
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co,.ltd
- Phone: 17391772083
- Address: Inland Port Mansion, No.9 Gangwu Road, Xi'an International Trade & Logistics Park, Xi'an City, Shaanxi Province, China
- Email:
- Website: https://yunyiyibiao.en.alibaba.com/
Published date: June 6, 2018
- Business Description: Xi'an Yunyi Instrument Co., Ltd.,
specializing in Piston dead weight tester, pressure calibrator, hand test pump, Pressure gauges / transmitters, level meter , flow meter, temperature and ph instruments with more than 10 years.
Related listings
-
China Oem High Temperature Melt Pressure Sensor PriceEquipment - Testing / Measuring - Xi'an Yunyi Instrument Co,.ltd - China - June 6, 2018 - 235.00 Dollar US$
Pressure Range: 0~1-300MPa Accuracy: 0.25%FS; 0.5%FS Output: 2.0mV/V;4~20mA;0~5V;1~5V; 0~10V Calibration signal: 80%FS calibration; zero and full scale adjust Working Temperature:0~450°C Powe r supply: Sensor:10VDC(6-12VDC) Transmitter:24VDC(9~36 V) ...
-
High Temperature China Pressure Transmitter 4 20maEquipment - Testing / Measuring - Xi'an Yunyi Instrument Co,.ltd - China - June 6, 2018 - 98.00 Dollar US$
Measuring media: oil, water, gas and other compatible media wetted parts Sensor: Stainless diffused silicon sensor Range: 0 ~ 50KPa ~ 100MPa; minimum range: 0 ~ 50KPa Pressure: 2 times the range (10MPa or less, more may contact) 1.5 times the range (...
-
China 3051smart Differential Pressure Transmitter 4 20maEquipment - Testing / Measuring - Xi'an Yunyi Instrument Co,.ltd - China - June 6, 2018 - 235.00 Dollar US$
UC800 3051 differential pressure transmitter can receive the gas, liquid and other pressure signals into a standard current and voltage signals (4 ~ 20mADC), to provide alarm, recorder, regulators and other secondary instruments for measurement, indi...
