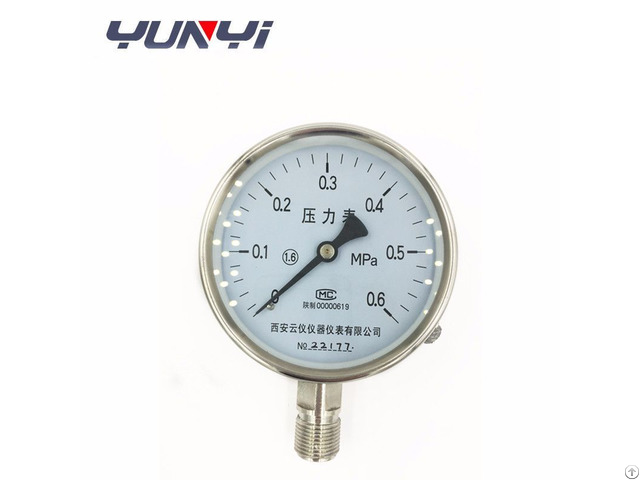

Mini Low Price Pressure Gauge - China

Description stainless steel pressure guage/pressure manometer Glycerine filled stainless steel pressure gauge with direct contact, fittings and pressure sensitive element of SUS316 material, has strong anti-corrosion properties of the measured medium, at the same time, housing, machines and other core components are all 1Crl8Ni9Ti, OCrl8Ni 12M02Ti material.

Hermetically structure, the outer surface of the entire spray PTFE Teflon coating, has the best corrosion resistance to environmental capacity, so that the product is suitable for corrosive medium stainless steel element detection and harsh external corrosive environments.

Detailed Images pressure guage/pressure manometer Mini low price pressure gaugeMini low price pressure gaugeMini low price pressure gaugeMini low price pressure gauge Specification oil pressure gauge manometer low pressure 1 - Accuracy class: 1.6, 2.5, 1.0(custom)

2 - Measuring range: (Mpa) (custom)

0-0.16 0-0.25 0-0.1 0-0.4

0-0.6 0-1.6 0-2.5 0-1

0-40-60-100-16

0-250-400-60

-0.1-0 -0.1-0.06 -0.1-0.15 -0.1-0.3

-0.1-0.5 -0.1-0.9 -0.1-1.5 -0.1-2.4

3 - Parts material: SUS316, SUS316L, 1Crl8Ni9Ti(custom)

4 - The instrument nominal diameter: Φ60mm Φ100mm Φ150mm( custom)

5 - Connector thread size: M20X1.5 (G3 / 8 ", Gl / 4", NPTl / 2 "or custom)

6 - Working conditions:

(1) Ambient temperature: -40-70 ℃

(2) Working pressure: Static load: with a scale value 3/4 alternating load: The

scale value short 2/3 pressure: the scale value
