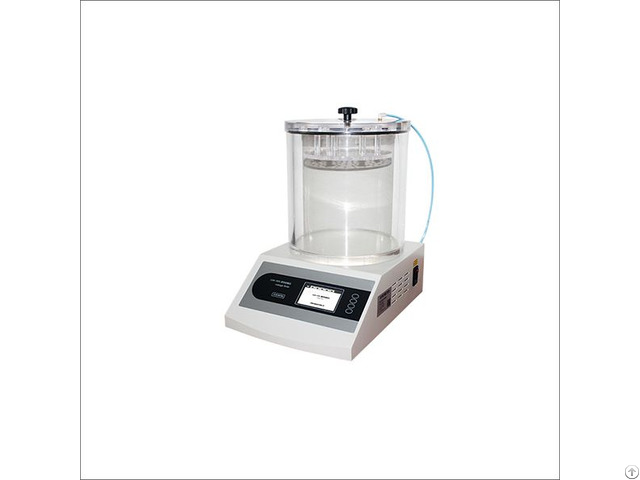

Medical Device Packaging Sealing Tester Emission Bubble Leak Testing Machine - China

Medical Device Packaging Sealing Tester Emission Bubble Leak Testing Machine Product Details Application: For the determination of gross leaks in flexible packaging containing a headspace gas by bubble emission method.

Medical Device Packaging Sealing Tester Emission Bubble Leak Testing Machine Features: 1 - Our own patent technology.

2 - Touch screen operation.

3 - Real color TFT LCD display.

4 - Pass, reject input, convenient query.

5 - High-accuracy pressure sensor inside.

6 - High performance pneumatic parts in side.

7 - Constant pressure, balance automatically control.

8 - Overload warning.

9 - Designed based on various standards.

9 - Low power consumption.

10 - RS232 communication port.

(Optional) Medical Device Packaging Sealing Tester Emission Bubble Leak Testing Machine Technical Indexes: Vacuum chamber 0~ - 92kPa

Accuracy 0.1%FS

Vacuum chamber size Φ270mm×220 mm (H)

Note Other vacuum chamber size is customized.

Gas source pressure 0.4MPa~1.0MPa (self-provide)

Gas interface Φ6mm

Power supply AC 220V 50Hz

Dimension 335mm(L)×475mm(W)×530mm (H)

Net weight 27kg Standards: ASTM D3078, GB/T
